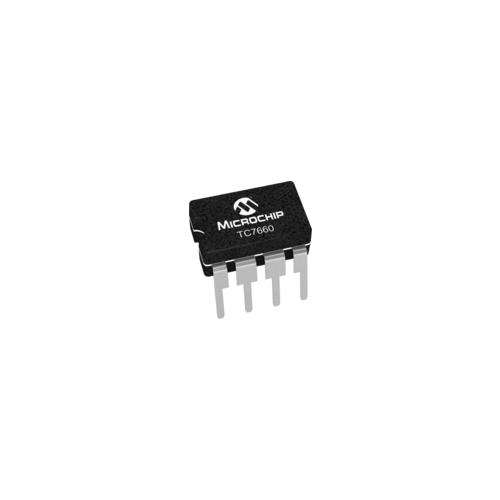

TC7660 Charge Pump Voltage Converter

TC7660 Charge Pump DC-to-DC Voltage Converter

The TC7660 device is a pin-compatible replacement for the industry standard 7660 charge pump voltage converter. It converts a +1.5V to +10V input to a corresponding -1.5V to -10V output using only two low-cost capacitors, eliminating inductors and their associated cost, size and electromagnetic interference (EMI).

The on-board oscillator operates at a nominal frequency of 10 kHz. Operation below 10 kHz (for lower supply current applications) is possible by connecting an external capacitor from OSC to ground.

Features of TC7660

• Wide Input Voltage Range : +1.5V to +10V

• Efficient Voltage Conversion (99.9%, typ)

• Excellent Power Efficiency (98%, typ)

• Low Power Consumption : 80 µA (typ) @ VIN = 5V

• Low Cost and Easy to Use Only Two External Capacitors Required

• Available in 8-Pin Small Outline (SOIC), 8-Pin PDIP and 8-Pin CERDIP Packages

• Improved ESD Protection (3 kV HBM)

• No External Diode Required for High-Voltage Operation

Applications of TC7660

• RS - 232 Negative Power Supply

• Simple Conversion of +5V to ±5V Supplies

• Voltage Multiplication VOUT = ± n V+

• Negative Supplies for Data Acquisition Systems and Instrumentation
