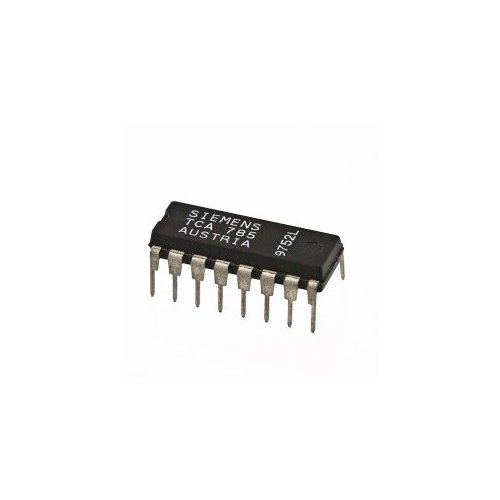

TCA785 Phase Control IC

This phase control IC is intended to control thyristors, triacs, and transistors.

The trigger pulses can be shifted within a phase angle between 0˚ and 180˚. Typical applications include converter circuits, AC controllers and three-phase current controllers. This IC replaces the previous types TCA 780 and TCA 780 D.

Features of TCA785 Phase Control IC

• Reliable recognition of zero passage

• Large application scope

• May be used as zero point switch

• LSL compatible

• Three-phase operation possible (3 ICs)

• Output current 250 mA

• Large ramp current range

• Wide temperature range
