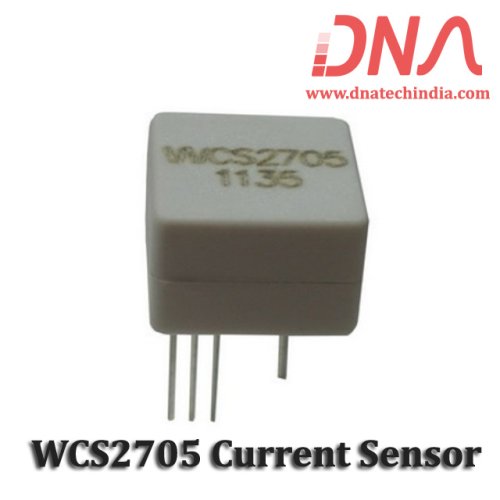

WCS2705 Current Sensor for AC and DC Current Sensing

WCS2705 Current Sensor, 0 to 5A range, 255 mV/A sensitivity, ideal for motor control.

The WCS2705 Current Sensor is designed for precise current measurement in both AC and DC applications. It features a sensing range of 0 to 5 Amperes and a high sensitivity of 255 mV/A. This sensor is ideal for motor control, load detection, and intelligent power management systems. Its low internal conductor resistance of 8.3 mΩ minimizes power loss and enhances reliability.

With a temperature compensation circuit and electrically isolated terminals, the WCS2705 Current Sensor ensures safe and effective operation without costly isolation techniques. This makes it a cost-effective solution for various industrial and commercial applications. Its wide operating voltage range of 3.0 to 12 V and low operating current of 3 mA make it versatile for different setups.

Explore the advanced features of the WCS2705 Current Sensor that allow for low noise analog signal transmission and ratiometric output. Whether for fault detection or power management, this sensor stands out in the Current and Voltage Sensor category. Discover how it can enhance your projects today.

At DNA, we offer the WCS2705 Current Sensor from a trusted manufacturer. This sensor provides reliable solutions for current measurement. Explore our extensive range of Current and Voltage Sensors. Check other Current and Voltage Sensor that we have in stock.

Are you searching for specific electronic components? At DNA, we can help you find what you need. We can also import items that are not readily available. Explore our range including Sensors, HMI Displays, Digital ICs, and more. Contact Us.

Features of WCS2705 Current Sensor

• Low noise analog signal path
• 8.3 mΩ internal conductor resistance
• Output voltage proportional to AC and DC current
• High Sensitivity 255 mV/A
• Wide operating voltage range 3.0~12 V
• Low operating current 3 mA
• Nearly zero magnetic hysteresis
• Ratiometric output from supply voltage
• 10K Hz bandwidth

Specification of WCS2705 Current Sensor

• Current sensing range: 0 to 5 A
• Sensitivity: 255 mV/A
• Internal resistance: 8.3 mΩ
• Operating voltage: 3.0~12 V
• Operating current: 3 mA

Applications of WCS2705 Current Sensor

• Motor control
• Load detection
• Over-current fault detection
• Intelligent power management
• Industrial automation

Related Links for WCS2705 Current Sensor for AC and DC Current Sensing

• Other Products from Current and Voltage Sensor Category

Package Includes

• 1 X WCS2705 Current Sensor
