Wireless Power Transfer Module
Wireless Energy Transmission or Wireless Power Transfer (WPT) or is a method of transferring electrical power from one point to another without using conductors.
Wireless transmission is useful to power electrical devices in cases where interconnecting wires are inconvenient, hazardous, or are not possible.
This is a easy to use Wireless Power Transfer Module. This module consists of Transmitter Section & a receiver Section. Both the sections have a coil which acts as a transmitting/receiving antenna.
This product can be used for wireless charging of mobile phones and various small electronic products. It is in a very small form factor and is extremely easy to use, efficient & low costing. It can be used for wireless charging of your product thus making the product completely sealed, dust proof & waterproof thus increasing your products life.

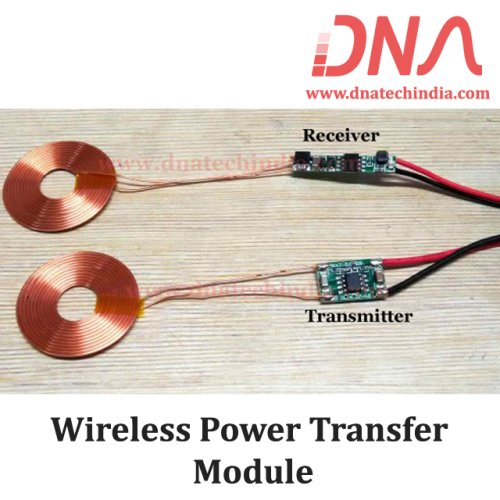

This kit includes a transmitter and a receiver. Module having elongated long PCB is the Receiver & the smaller rectangular one is the transmitter. Input supply to the Transmitter is 9-12 Volt DC and the output from the receiver side is 5 volts. The output current will vary and is inversely proportional to the distance between the two coils i.e. smaller the distance between the two coils more the output current at the receiver end.
Features of Wireless Power Transfer Module
- Transmitter Module Input voltage : 9-12 Volts
- Transmitter module dimensions : 22 * 12 * 2mm
- No-load current : 40mA or so

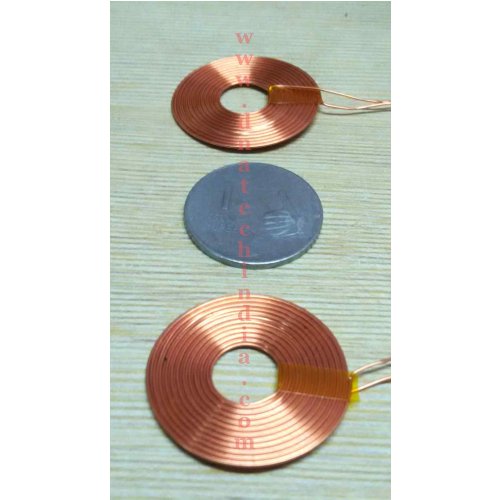

- Transmitting coil size : 30mm *1mm
- Receiving coil size : 30mm * 1mm
- Receive regulator board Dimensions : Length Width 27mm * 5mm *2.5mm
- Receives the output voltage : 5V
- Receiving the output current : 350-450MA
- Receiving usual distance : 3- 6mm
Wireless Energy Transmission Kit Includes
- 1 x Transmitter (12 Volt Supply)
- 1 x Receiver (5 volt Output)
