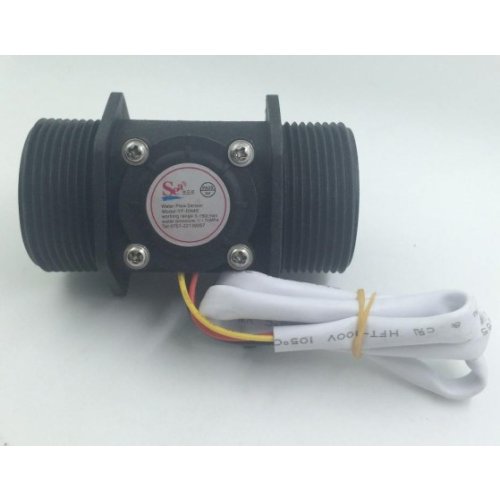

YF-DN40 1.5" Water Flow Sensor

YF-DN40 1.5 inch Industrial Water Flow Sensor

YF-DN40 is a plastic body water flow sensor that contains a water rotor and a hall-effect sensor and is used for flow measurement for industrial application . When the water flows through the rotor, rotor rolls and the speed of it changes with a different rate of flow. The hall-effect sensor outputs the corresponding pulse signal.

The output of the flow sensor is proportional to the water flow. The more the water flowing more are the pulses.

Features

• Hydrostatic pressure> 1.75MPa meet

• Operating voltage range DC 5 ~ 24V comply

• Insulation resistance> 100M> 100M

• Accuracy in 1 ~ 120L / MIN ± 2% in line

• Flow pulse characteristics F = (0.45 * Q) Q = L / Min meet

• Low temperature test at -20'C temperature placed after 72h, at room temperature for 1h, the first measurement accuracy within ± 5% value in line

• High-temperature test temperature at 85'C placed after 72h, at room temperature for 1h, the first measurement accuracy within ± 5% value

• 11/2" DN40 flow rate 5~150L/min Plastic Hall Turbine flow sensor meter switch valve control liquid flow sensor

Specifications

• Product item no. : YF-DN40

• Material : Plastic

• Function : Sensor , flow rate control

• Thread size : BSP 1 1/2”

• Size : L 92x OD46 X1.5"

• Color : Black color
