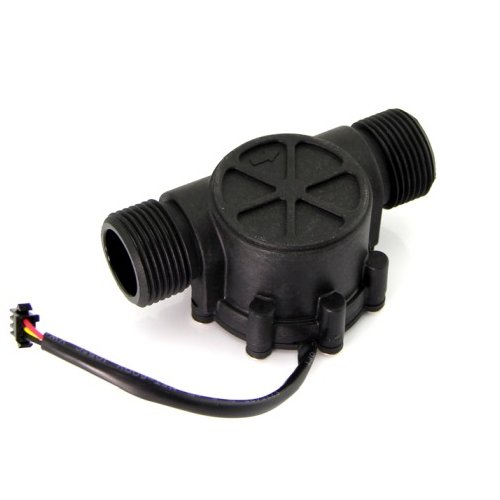

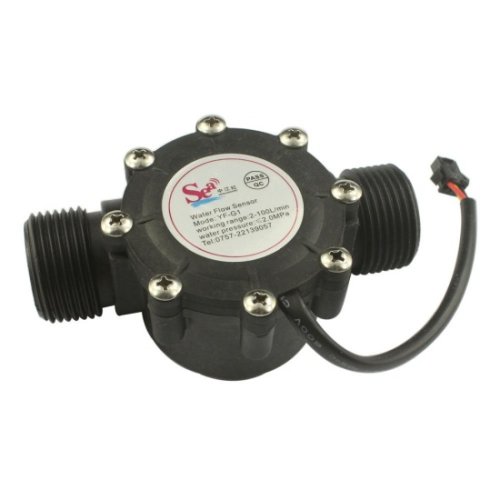

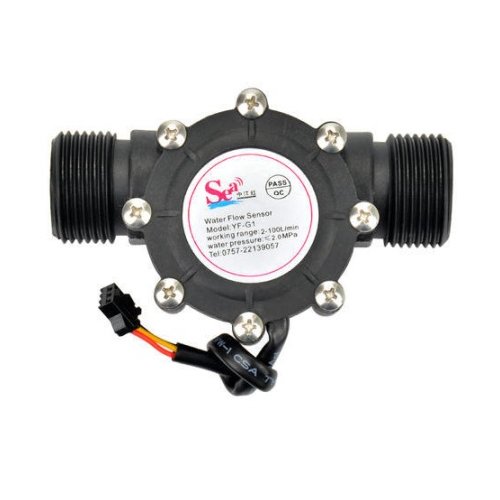

YF-G1 DN25 1 inch Water Flow Sensor

This one is suitable to detect flow in water dispenser or coffee machine.

YF-G1 DN25 1 inch Water flow sensor used for flow measurement it consists of a plastic valve body, a water rotor, and a hall-effect sensor. When water flows through the rotor, rotor rolls. Its speed changes with different rate of flow. The hall-effect sensor outputs the corresponding pulse signal.

Features

• Compact, Easy to Install

• High Sealing Performance

• High Quality Hall Effect Sensor

• RoHS Compliant

Specifications

• Mini. Working Voltage : DC 4.5V

• Working Voltage : DC 5V~18V

• Flow Rate Range : 2~100L/min

• Water pressure resistance : = >2MPa

• Operating Temperature : = -20~85C

• Insulation resistance : = >100MΩ

• Characteristics of Flow pulse : f=(4.8*Q) Q=L/Min

• Accuracy : ±3%
