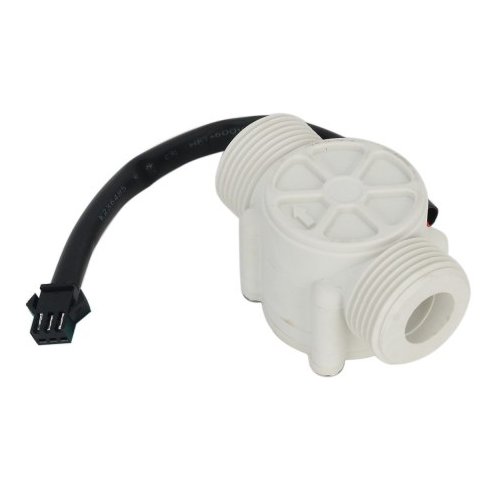

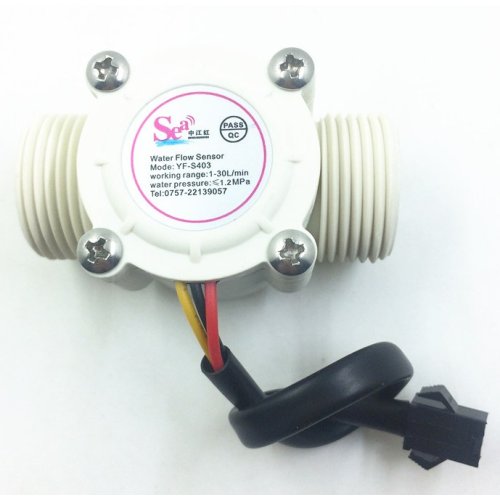

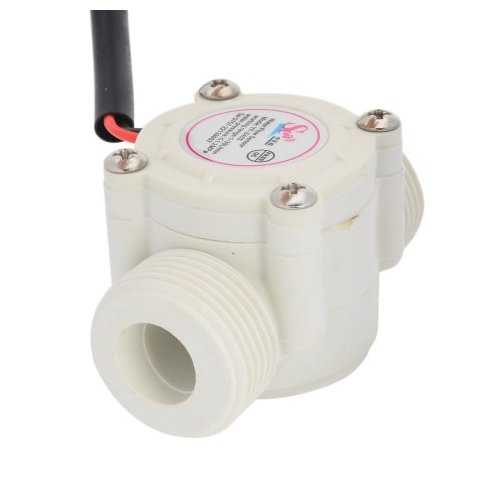

YF-S403 3/4" Water Flow Hall Sensor

YF-S403 3/4" Hall effect Based Flow Sensor

Water flow sensor is mainly consists of plastic valve body, rotor assembly and hall current sensor. This flow sensor can be used for accurate flow measurement. It is installed in the hot water inlet end for detecting water flow. When water through the flow rotor assembly, magnetic rotor will rotate and Speed will change as the flow change. Hall current sensor output corresponding pulse signal and feedback to controller, then the controller will control the flow. Can be used for water heaters, credit card machines, water vending machine, flow measurement device.

Features

• Light weight, small size, easy to install.

• Inlaid with stainless steel impeller shaft, durable wearable.

• Seal ring with the upper and lower force structure never leaks.

• Non-violent shock, and chemical erosion.

• Non-throwing or hitting.

• Mounted vertically, should not exceed 5 degrees inclination.

• Temperature of medium should not exceed 120 ℃.

Wire Connections

• Red : Positive(+)

• Yellow : Signal output.

• Black : Negative(-)

Specifications

• The lowest rated working voltage : DC 4.5 5V - 24V.

• Maximum Operating Current : 15 mA (DC 5V).

• Working voltage range : DC 5 - 18V.

• Load capacity : ≤ 10 mA (DC 5V).

• Working temperature : ≤ 80 ℃

• Working humidity range : 35%-90% RH (no frost)

• Allow Pressure : 1.75Mpa

• Storage temperature : -25 - + 80 ° c

• Save Humidity : 25% - 95% RH

• Flow range : 1-30L / min

• External thread : 3/4 "

• Output interface diameter : Ca. Outside 26mm, inside 12mm, 14mm.

Package Includes

• YF-S403 3/4" Water Flow Hall Sensor 3/4 Inch External Thread 1-30L/min Flowmeter
