Winsen ZE03-O2 GAS Sensor Module

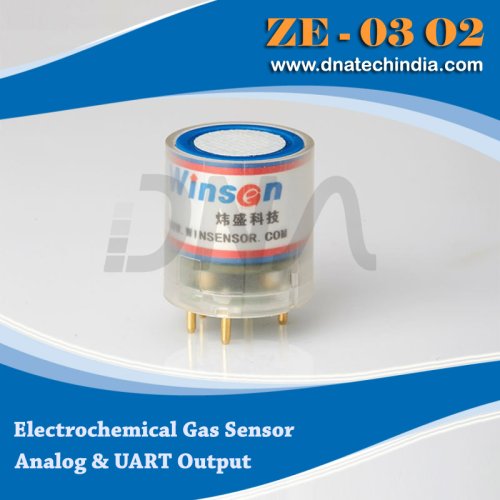

Electrochemical GAS Detection Module ZE03-O2

ZE03-O2 Gas sensor can be used to measure Oxygen concentration in atmosphere. This is an Industrial grade sensor and is are very easy to interface to your Micro-controller, Arduino as well as Raspberry Pi as they have linear Analog output as well as UART output (3 volts).

ZE03 Series of Gas Sensor Modules by Winsen is a general-purpose and high-performance electrochemical module. It uses three electrodes, electro-chemical gas sensor and high-performance micro-processor. By using this GAS Sensor you will be able to Monitor concentration of Oxygen gas.

It is with built-in temperature sensor to make temperature compensation, which makes more accurate to detect Oxygen gas concentration. It has the digital output as well as analog voltage output at the same time which facilities the usage and calibration and shortens the development period. It is a combination of mature electrochemical detection principle and sophisticated circuit design, to meet customers different detection needs.

Features Of ZE03-O2 GAS Detection Module

• High sensitivity & resolution

• Low power consumption

• UART and analog voltage output

• Good stability and excellent anti-interference ability

Application Of ZE03-O2 GAS Detection Module

• Portable and fixed gas detector, various gas detection equipment and situation.

Technical Parameters of ZE03-O2 Oxygen GAS Sensor Module

• Model No : ZE03

• Target Gas : Oxygen (O2)

• Working Voltage : DC 4 Volt to 9 Volts

• Working Current : < 5 mA

• Size : ø23.5 mm x 24.5 mm

• Working Life : 2 year

• Output Data : UART Output (TTL electrical level, 3 Volts ) and Analog Voltage

• Storage Environment Temp. : -20~25°C

• Storage Environment Humidity : 30%RH - 70%RH

• Operating Environment Temp. : -20 to 50°C

• Operating Environment Humidity. : 15%RH-90%RH (no condensation)

• Detection range : 0-25% vo Decimal point of serial port 1 byte

• Voltage output : 1.5 - 0 Volts

• Response Time : ≤15 s

Pin definition Of Electro-chemical Detection Module ZE03-O2

• GND : Ground

• VCC : Power supply (4 volt to 9 volts)

• VO : Analog output Voltage

• RXD : Serial Port Input (3 volts)

• TXD : Serial port output (3 volts)
