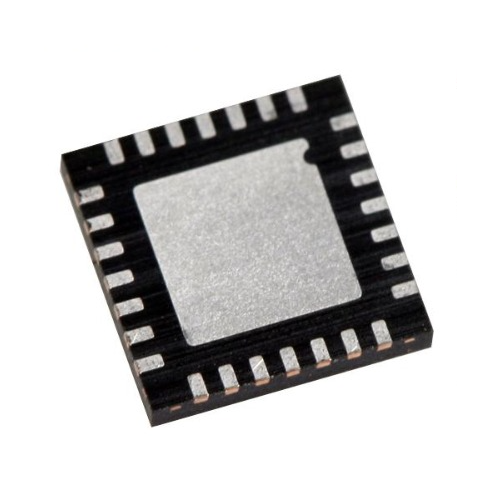

A4988SETTR-T DMOS Microstepping Driver with Translator and Overcurrent Protection SMD IC

A4988SETTR-T DMOS Microstepping Driver with Translator and Overcurrent Protection SMD IC

The A4988SETTR-T DMOS Microstepping Driver with Translator and Overcurrent Protection IC with built-in translator for easy operation. It is designed to operate bipolar stepper motors in full-, half-, quarter-, eighth-, and sixteenth-step modes, with an output drive capacity of up to 35 V and ±2 A. The A4988 includes a fixed off-time current regulator which has the ability to operate in slow or mixed decay modes.

DNA solutions, Nashik has various types of IC's. Check out our complete collection of Stepper IC's.

• Automatic current decay mode detection/selection

• Mixed and Slow current decay modes

• Synchronous rectification for low power dissipation

• Internal under voltage lockout

• Crossover-current protection

• Thermal shutdown circuitry

Specifications of A4988SETTR-T DMOS Microstepping Driver with Translator and Overcurrent Protection SMD IC

• Motor Type: Stepper

• Output Current: 2A

• No. of Outputs: 2Outputs

• Output Voltage: 35V

• No. of Pins: 28Pins

• Supply Voltage Max: 5V

• Operating Temperature Max: 85°C

Package Includes

• 1 x A4988SETTR-T DMOS Microstepping Driver with Translator and Overcurrent Protection SMD IC
