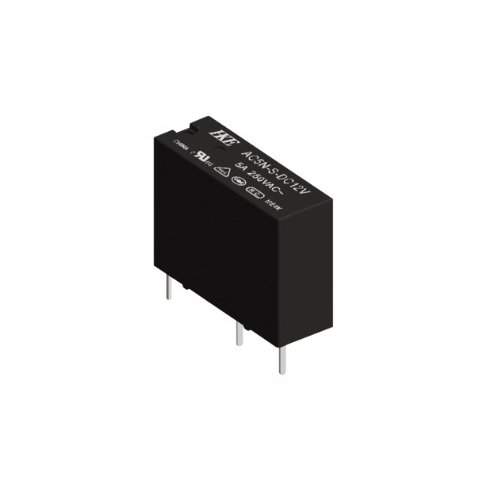

AC5N-S-DC12V PCB Relay

AC5N S DC12V PCB relay 12 Volt Relay

The AC5N-S-DC12V is a Single Pole Double Throw (SPDT) relay designed for PCB mounting. It operates with a 12V DC coil voltage and can switch AC or DC loads. This relay is typically used in automation systems, control panels, and other electronic projects requiring reliable switching.

DNA solutions, Nashik has various types of Module's. Check out our complete collection of Module's.

• Compact Size: The small form factor makes it suitable for tight spaces on PCB layouts.

• High Switching Capacity: Capable of handling high AC or DC loads.

• SPDT Configuration: Allows for control of two different circuits (Normally Open and Normally Closed).

• Isolation: Provides electrical isolation between the control circuit and the load.

• Durability: Designed for a long operational life with high mechanical endurance.

• Versatile Applications: Suitable for various applications including home automation, industrial control systems, and other electronic projects.

Specifications of AC5N-S-DC12V PCB Relay Module

• Model Number: AC5N-S-DC12V

• Coil Voltage: 12V DC

• Contact Rating: 5A at 250V AC / 5A at 30V DC

• Max Switching Voltage: 250V AC / 30V DC

• Max Switching Power: 1250 VA (AC) / 150 W (DC)

Package Includes

1 x AC5N-S-DC12V PCB Relay
