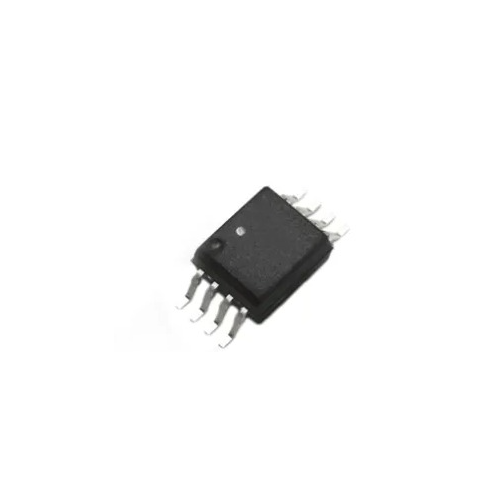

ACPL H301 Optocoupler High-Speed SMD IC

ACPL-H301 Optocoupler IC for high-speed signal transmission with 5000 Vrms isolation and 4 ns propagation delay.

The ACPL H301 Optocoupler High-Speed SMD IC is designed for safe and efficient signal transmission. With an isolation voltage of 5000 Vrms, it ensures safety in high-voltage applications. The propagation delay of just 4 ns makes it suitable for high-speed digital interfaces, ideal for automation and medical equipment. Its low power consumption enhances its usability in various industrial settings.

This optocoupler is perfect for environments requiring high common mode transient immunity. Operating within -40°C to +100°C, the ACPL H301 Optocoupler High-Speed SMD IC is versatile for multiple applications including power supply isolation and security systems. Its 8-pin SOP-8 package allows for easy surface-mount assembly, making it a reliable choice for engineers.

Explore the capabilities of the ACPL H301 Optocoupler High-Speed SMD IC in your projects. Whether for industrial automation or home appliances, this component meets the demands of modern electronic designs.

Discover reliable solutions in the 'OptoCouplers & OptoIsolators' category at DNA. The ACPL H301 from a trusted manufacturer provides high-speed performance for your electronic projects. Explore more products in this category. Check other 'OptoCouplers & OptoIsolators' that we have in stock.

At DNA, we cater to all your electronic component needs. If you are looking for specific parts like MOSFETs, Microcontrollers, or Sensors, reach out to us. We can import parts if they are unavailable and support you in retail as well as bulk orders. Contact Us.

Features of ACPL H301 Optocoupler High-Speed SMD IC

• High-speed performance with 4 ns propagation delay
• 5000 Vrms isolation voltage
• Low power consumption of 4 mA max
• High common mode transient immunity of 2000 V/μs
• Operating temperature from -40°C to +100°C
• 8-pin SOP-8 package for easy assembly.

Specification of ACPL H301 Optocoupler High-Speed SMD IC

• Isolation Voltage: 5000 Vrms
• Propagation Delay (tPHL/tPLH): 4 ns
• Supply Voltage (Vcc): 4.5V to 5.5V
• Input Forward Current (IF): 5 mA (typical), 10 mA (max)
• Supply Current (ICC): 4 mA (max)
• Data Rate: 10 Mbps
• Output Type: Open Collector.

Applications of ACPL H301 Optocoupler High-Speed SMD IC

• Industrial automation systems
• Medical equipment
• Home appliances
• Security systems
• Power supply isolation.

Related Links for ACPL H301 Optocoupler High-Speed SMD IC

• Other Products from OptoCouplers & OptoIsolators Category

Package Includes

• 1 X ACPL H301 SMD IC
