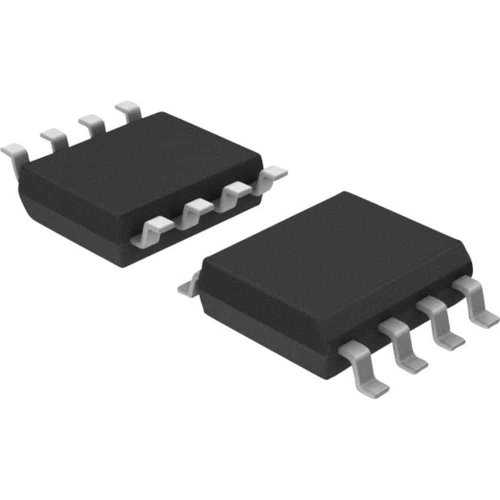

The ACS712 5 Ampere Current Sensor is designed for accurate AC and DC current sensing. It features a low-offset, linear Hall sensor that provides precise measurements with a typical output sensitivity of 185 mV/A. The ACS712 5 Ampere Current Sensor is ideal for applications such as motor control and overcurrent protection due to its robust design and small footprint. Its low internal resistance of 1.2 mΩ ensures minimal power loss while maintaining high accuracy.
This sensor operates with a supply voltage of 5.0 Volts and offers a frequency bandwidth of 80 kHz. The ACS712 5 Ampere Current Sensor is factory-trimmed for accuracy and provides a stable output with nearly zero magnetic hysteresis. Its unique design allows for electrical isolation, making it a versatile choice for various industrial applications.
With a rise time of just 5 µs, the ACS712 5 Ampere Current Sensor meets the demands of fast response applications. This sensor is fully calibrated before shipment, ensuring reliability and performance in critical systems.
| Key | Description |
| Supply Voltage | 5.0 Volts |
| Supply Current | 10 mA |
| Primary Conductor Resistance | 1.2 mOhm |
| Frequency Bandwidth | 80kHz |
| Output Capacitance Load | 10nF |
| Optimized Accuracy Range | -20~20A |
| Sensitivity | 185 mV/A |
| Item | Description |
| ACS712 5 Ampere | 1 |
See 2 Ratings & Reviews |
