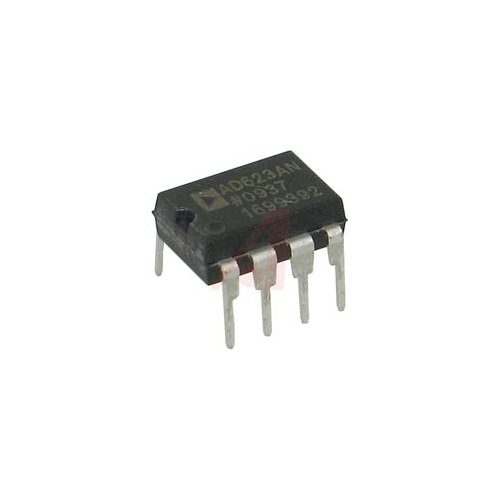

The AD623 is an integrated, single- or dual-supply instrumentation amplifier that delivers rail-to-rail output swing using supply voltages from 3 V to 12 V.
The superior accuracy of the AD623 is the result of increasing ac
common-mode rejection ratio (CMRR) coincident with increasing gain; line
noise harmonics are rejected due to constant CMRR up to 200 Hz. The
AD623 has a wide input common-mode range and amplifies signals with
common mode voltages as low as 150 mV below ground. The AD623 offers superior user flexibility by allowing single gain set resistor programming and by conforming to the 8-lead industry standard pinout configuration. With no external resistor, the AD623 Instrumentation Amplifier is configured for unity gain (G = 1), and with an external resistor, the AD623 can be programmed for gains of up to 1000. The AD623 maintains superior performance with dual and single polarity power supplies.
Easy to use
Rail-to-rail output swing
Input voltage range extends 150 mV below ground (single supply)
Low power, 550 μA maximum supply current
Gain set with one external resistor
Gain range : 1 to 1000
0.10% gain accuracy (G = 1)
0.35% gain accuracy (G > 1)
High accuracy dc performance
Noise: 35 nV/√Hz RTI noise at 1 kHz
Excellent dynamic specification
Low power medical instrumentation
Low power data acquisition
Industrial process controls
Thermocouple amplifiers
Difference amplifiers
