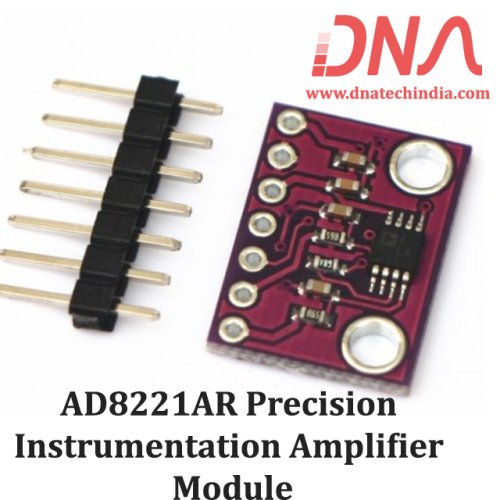

AD8221AR Precision Instrumentation Amplifier Module
AD8821 is a gain programmable, high performance Instrumentation Amplifier from Analog devices.

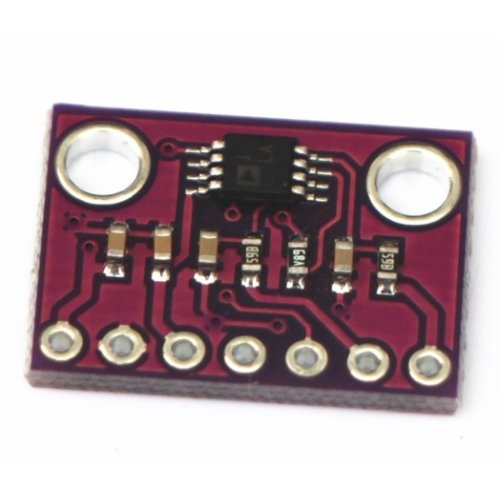

This module is a breakout board for AD8221 IC.
- The AD8221AR is a gain programmable, high-performance instrumentation amplifier with the highest common mode rejection ratio (CMRR) relative to frequency in the industry.
- Low-voltage offset, low offset drift, low gain drift, high gain accuracy, and high common-mode rejection ratio make this device an excellent choice for applications requiring optimal dc performance, such as bridge signal conditioning.
- The CJMCU-8221 can be operated from a single or dual supply, making it ideal for applications where the input voltage is ± 10 V.
- The device is rated over the industrial temperature range of -40 ° C to + 85 ° C for all ratings. In addition, the AD8221 can operate from -40 °C to + 125 °C .
- Programmable gain gives the user design flexibility. Through a resistor, gain can be set in the range of 1 to 1000.
We have Various sizes of Instrumentation Amplifiers. Check out our complete collection of Instrumentation Amplifiers.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
AD8221AR Amplifier Module Features
- Available in space-saving MSOP
- Gain set with 1 external resistor (gain range 1 to 1000)
- Wide power supply range : ±2.3V to ±18V
- Excellent AC specifications
- 80 dB minimum CMRR to 10 kHz (G = 1)
- 825 kHz, –3 dB bandwidth (G = 1)
- 0.25 μV p-p input noise (0.1Hz to 10Hz)
- High accuracy dc performance (AD8221BR)
- 90 dB minimum CMRR (G = 1)
- 25 μV maximum input offset voltage
- 0.3 μV/°C maximum input offset drift
- 0.4 nA maximum input bias current
AD8221AR Amplifier Module Applications
- Industrial process controls
- Precision data acquisition systems
Package Include
- 1 x AD8221AR Precision Instrumentation Amplifier Module
