AD620 Instrumentation Module

AD620 Microvolt MV/ mV Voltage Amplifier Signal Instrumentation Module Board

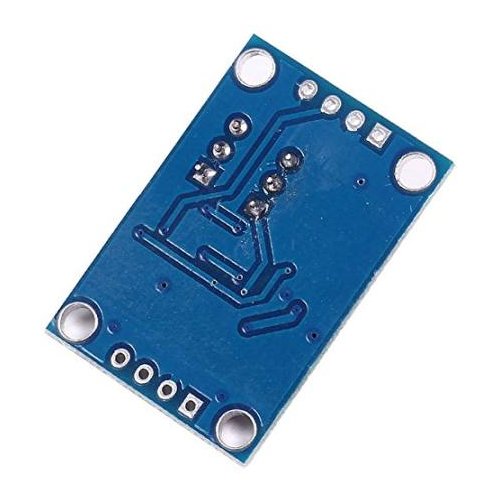

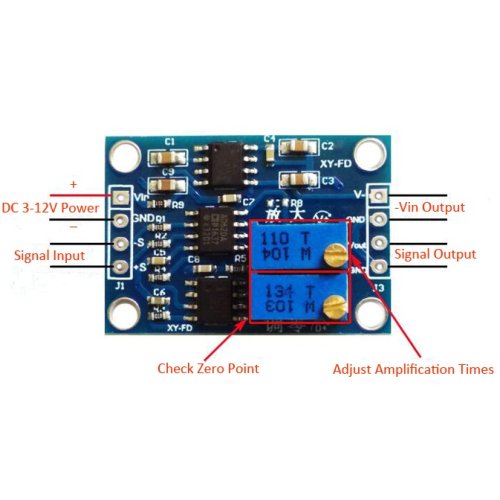

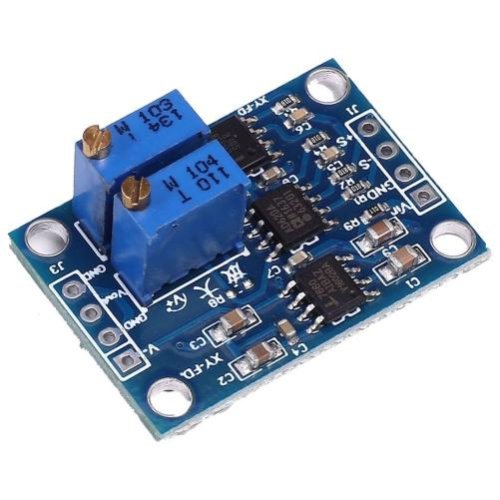

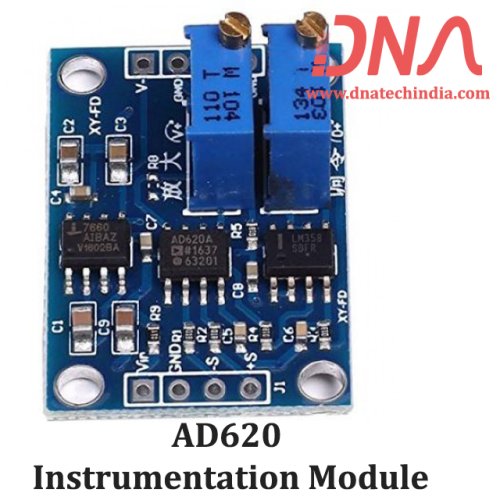

This is a a High Precision Signal Amplifier Board/Voltage Amplifier Module based upon AD620 Instrumentation amplifier IC, Input voltage range: DC 3~12V, Amplification: adjustable 1.5~1000 times, Adjustable zero to improve accuracy. Can be used for AC, DC signal amplification.

We have Various sizes of Instrumentation Amplifiers. Check out our complete collection of Instrumentation Amplifiers.

Specifications

• Input voltage range : DC 3~12V

• Amplification : adjustable 1.5~1000 times, adjustable zero

• Signal input voltage range : 100µV~300mV

• Signal output range : ± (Vin-2V)

• Negative voltage output : > -Vin, for the output resistance of negative voltage chip, the actual output is greater than -Vin, the greater the load power, the greater the negative voltage drop.

• Offset voltage : 50µV

• Input bias current : 1.0nA (Max)

• Common mode rejection ratio : 100dB

• Offset voltage drift : 0.6µV/? (Max)

• Dimension : 32x22mm

Features

• The AD620 amplification, can amplify microvolt, millivolt, offers higher amplification precision than LM358, the max voltage output range is ± 10V.

• It uses potentiometer to amplify the input signal, max amplification can be 1000 times, can be adjusted by the potentiometer.

• It can not only improve the accuracy, but also can avoid the zero drift phenomenon by using the zero potentiometer to adjust the zero.

• The module adopts 7660A negative voltage chip to output negative voltage(-Vin), can be used to drive other dual power load.

Package Included :

• 1X AD620 Microvolt Millivolt DC Voltage Amplifier Module
