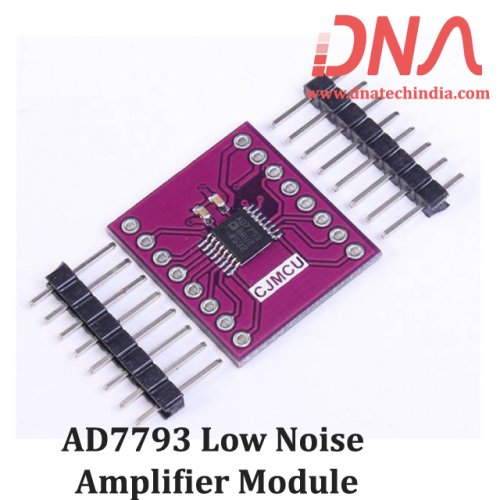

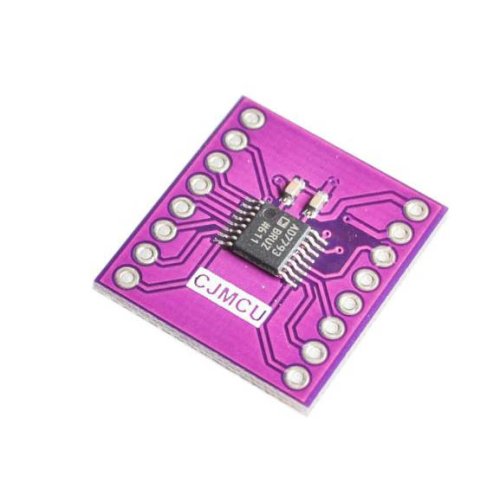

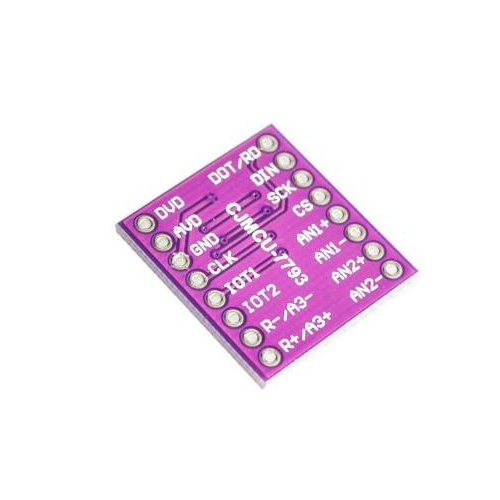

AD7793 low noise amplifier module

The AD7793 are low power, low noise, complete analog front ends for high precision measurement applications.

The AD7793 contain a low noise 16-/24-bit ∑-Δ ADC with three differential analog inputs. The on-chip, low noise instrumentation amplifier means that signals of small amplitude can be interfaced directly to the ADC. With a gain setting of 64, the rms noise is 40 nV when the update rate equals 4.17 Hz.

We have Various sizes of Modules. Check out our complete collection of Modules

AD7793 Module Features

• Up to 23 bits effective resolution

• RMS noise : 40nV (4.17Hz);85nV (16.7Hz)

• Current : 400uA typical

• Power-down : 1uA maximum

• Low noise programmable gain instrumentation amp

• Band gap reference with 4 ppm/celsius drift typical

• Update rate : 4.17Hz to 470Hz

• 3 differential inputs

• Internal clock oscillator

• Simultaneous 50Hz/60Hz rejection

• Programmable current sources

• On-chip bias voltage generator

• Burnout currents

• Power supply : 2.7V to 5.25V

• Temperature range : -40~105 celsius

• Independent interface power supply

AD7793 Module Applications

• Thermocouple measurements

• RTD measurements

• Thermistor measurements

• Gas analysis

• Industrial process control

• Instrumentation

• Portable instrumentation

• Blood analysis

• Smart transmitters

• Liquid/gas chromatography

Package includes

• 1 x AD7793 low noise amplifier module

Related Details

• AD7793 Datasheet
