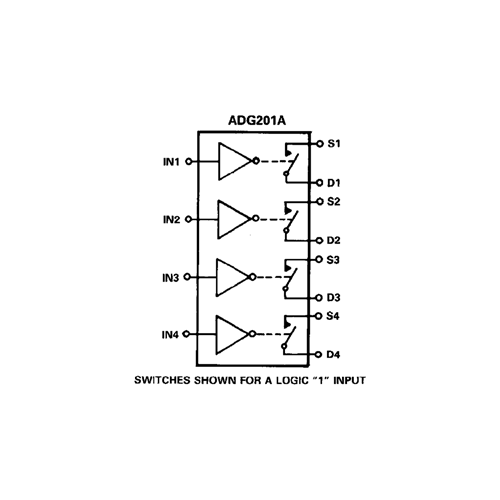

ADG201A is a monolithic CMOS device comprising four independently selectable switches.
They are designed on an enhanced LC 2MOS process which gives an increased signal handling capability of ±15 V. These switches also feature high switching speeds and low RON.
The ADG201A switches are turned on with a logic low on the appropriate control input. Each switch conducts equally well in both directions when ON and each has an input signal range that extends to the supplies. All switches exhibit break-before-make switching action for use in multiplexer applications. Inherent in the design is low charge injection for minimum transients when switching the digital inputs.
44 V Supply Maximum Ratings
± 15 V Analog Signal Range
Low On-Resistance (60 max)
Low Leakage (0.5 nA typ)
Break-Before-Make Switching Action
Extended Plastic Temperature
Range (-40ºC to +85ºC)
Low Power Dissipation (33 mW)
TTL/CMOS Compatible
Superior Second Source for
DG201A/HI201

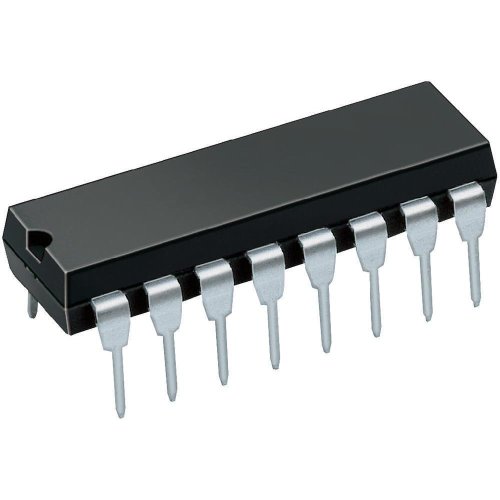

16-Lead DIP/SOIC Packages
