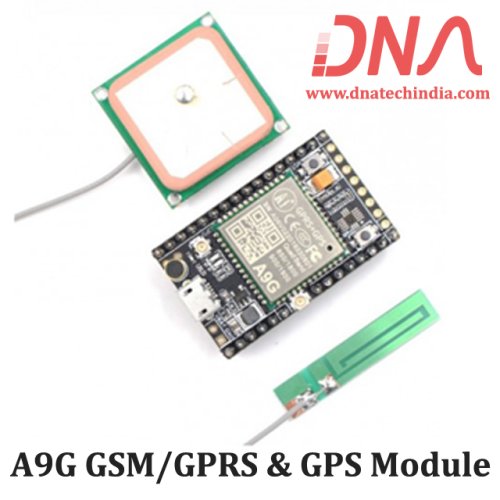

A9G GSM/GPRS & GPS Module

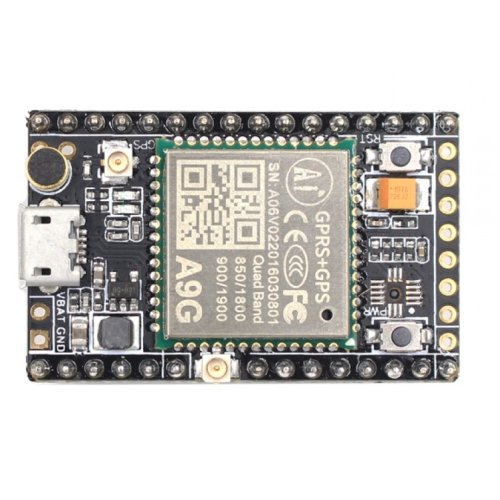

A9G GSM, GPRS + GPS Module from AI-Thinker

The A9 development board is a multi-functional development board based on AI-Thinker's A9 GPRS/ GSM module, you can use it to verify the basic communication and peripheral functions of A9 module. It has the basic phone/ SMS, GPRS networking communications.

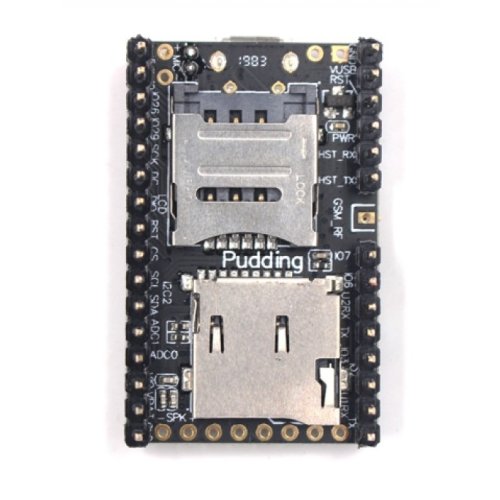

There are lithium battery charge management, microphone, speaker interface, USB communication interface, multiple user keys/ led, TF card slot, acceleration sensor, SPI interface, I2C2 interface, ADC interface on the boards, so you can develop different functions with this board. This board has camera expansion board, so you can connect an external 30W/ 200W camera. It can add a traditional slot machine for it contains slot machine function.

We have Various sizes of GPS-GSM Module. Check out our complete collection of GPS-GSM Module.

Features of A9 GSM, GPRS and GPS Module

• Supports voice call and SMS message.

• Supports GSM/ GPRS frequency : 850/ 900/ 1800/ 1900 MHz.

• Supports GPRS data service, the maximum download data rate is 85.6 Kbps, upload data is 42.8 Kbps.

• Supports GSM07.07, 07. 05 AT commands and Ai-Thinker explosion command.

• Supports 3 serial ports, one download serial port, one AT command port.

Specifications

• Size : 19.2mm x 18.8mm x 3mm

• Working temperature : -30 ℃-80℃

• Working voltage : 3.5v – 4.2v (it’s best to power by 4v)

• Power voltage : >3.5 Volts

• Low power consumption :

• Sensitivity GPIO level : 2.8 volts
