APM POWER MODULE WITH XT60 CONNECTOR

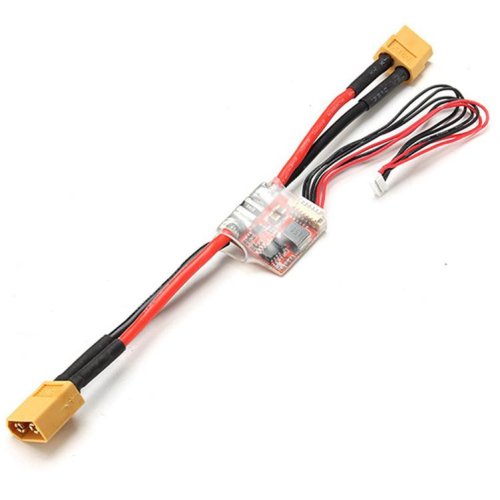

The Power Module comes completely assembled with XT60 connectors, and wrapped in shrink tubing for protection.

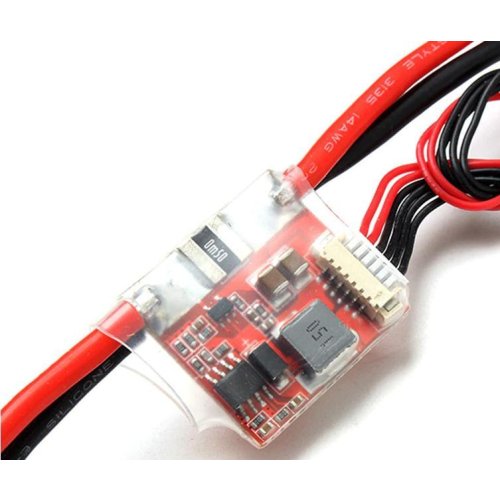

The APM Power Module is a simple way of providing your APM with clean power from a LiPo battery as well as current consumption and battery voltage measurements, all through a 6-pos cable. The on-board switching regulator outputs 5.3V and a maximum of 2.25A from up to a 4S LiPo battery.

DNA solutions, Nashik has various types of Drones and Quadracopter's. Check out our complete collection of Drones and Quadracopter's.

Specifications Of APM POWER MODULE WITH XT60 CONNECTOR

• Max input voltage : 28V

• Max current sensing : 90A

• Voltage and current measurement configured for 5V ADC

• Switching regulator outputs 5.3V and 2.25A max

• 6-pos DF13 cable plugs directly to APM 2.5's 'PM' connector

• Support 6S battery.

Applications Of APM POWER MODULE WITH XT60 CONNECTOR

• It is used in APM.

• It is used in RC receiver.

• It is used in GPS.

• It is used in 3DR Radio
