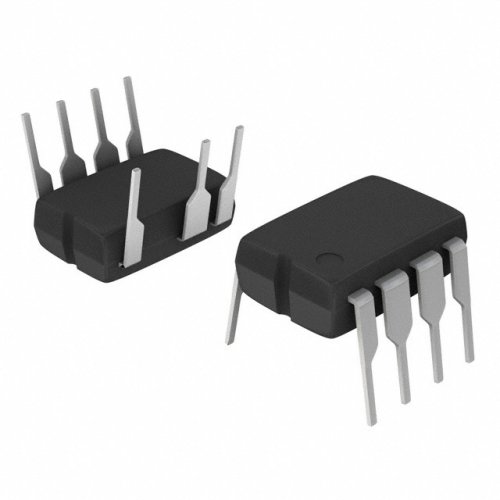

AQH0213 SOLID STATE RELAY AC LOAD CONTROL IC

Compact DIP type SSR Ideal for AC load control

The AQH0213 solid-state relay combines optical isolation and a compact DIP package to switch AC loads up to 400 VAC. This non-contact relay operates silently and is resistant to shock and vibration. Zero-crossing functionality reduces electrical noise, further enhancing the relay’s suitability for sensitive environments.

DNA solutions, Nashik has various types of IC's. Check out our complete collection of IC's.

• Optical Isolation: Phototriac coupling provides high dielectric isolation, ensuring safety between input and output circuits.

• Non-Mechanical Operation: Solid-state design with no moving parts for greater durability and extended operational life.

• Zero-Cross Triggering: Reduces noise by switching at the zero-voltage point, protecting connected loads from transient surges.

• Compact DIP Package: Easy integration on printed circuit boards (PCBs), allowing high-density designs.

• Efficient Heat Management: Low power dissipation for reduced heat build-up, improving energy efficiency and device longevity.

Specifications of AQH0213 SOLID STATE RELAY AC LOAD CONTROL IC

• Load Voltage (Output): Up to 400 VAC, suitable for a variety of AC applications.

• Load Current (Output): Rated at 0.6 A, handling moderate AC loads.

• Input Voltage: Control input voltage typically around 1.2 V forward voltage.

• Isolation Voltage: 5000 Vrms between input and output, ensuring robust isolation.

• Switching Method: Zero-crossing switching reduces surge currents and electromagnetic interference.

• Response Time: Fast switching with minimal delay for high-speed applications.

Package Includes

• 1 x AQH0213 SOLID STATE RELAY AC LOAD CONTROL IC
