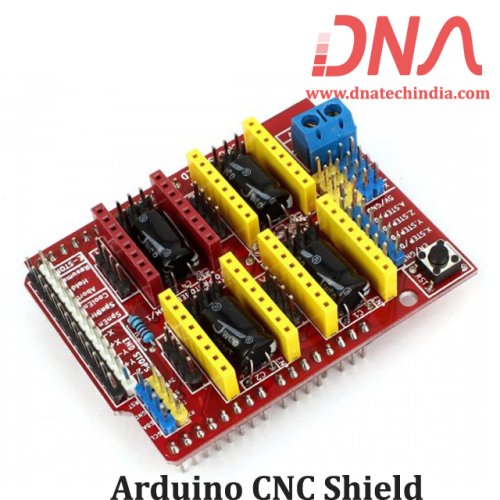

Arduino CNC Shield

Name: Arduino CNC Shield
Brand: Generic
SKU: DAB350
Price: 220.00 INR
Availability: OutOfStock
Rating: 5 (1 reviews)

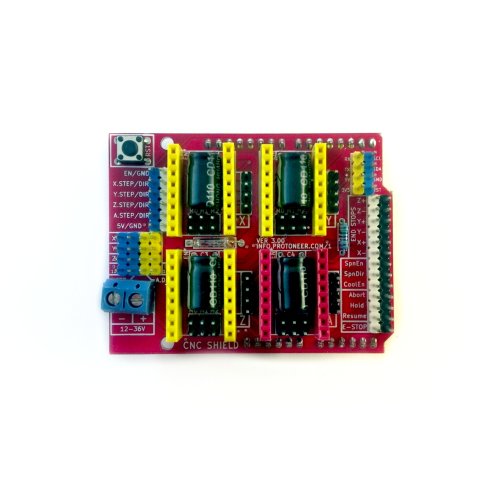

Arduino CNC Shield Version 3.0

The Arduino CNC Shield makes it easy to get your CNC projects up and running in a few hours. It uses opensource firmware on Arduino to control 4 stepper motors using 4 A4988 Stepper drivers,, with this shield and the Arduino you can build all kinds of robotics or CNC projects including CNC routers,laser cutters and even pick&place machines.

We have Various sizes of Arduino Sheild. Check out our complete collection of Arduino Sheild.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of CNC Shield

GRBL 0.8c compatible. (Open source firmware that runs on an Arduino UNO that turns G-code commands into stepper signals.

4-Axis support (X, Y, Z , A-Can duplicate X,Y,Z or do a full 4th axis with custom firmware using pins D12 and D13)

2 x End stops for each axis (6 in total)

Spindle, Coolant enable and direction

Uses removable Pololu A4988 compatible stepper drivers. (A4988, DRV8825 and others)

Jumpers to set the Micro-Stepping for the stepper drivers. (Some drivers like the DRV8825 can do up to 1/32 micro-stepping)

Compact design.

Stepper Motors can be connected with 4 pin molex connectors.

Runs on 12-36V DC. (At the moment only the Pololu DRV8825 drivers can handle up to 36V so please consider the operation voltage when powering the board.)

More Information

How to Use Arduino CNC Shield.
