Description

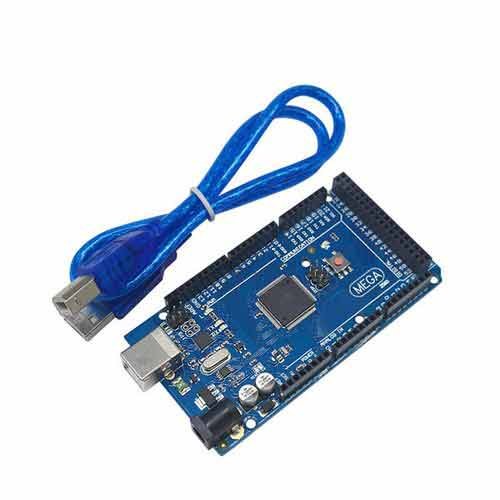

Arduino Mega 2560 R3 Improved Version CH340G Board

Name: Arduino Mega 2560 R3 Improved Version CH340G Board
Brand: Generic
SKU: DAD592
Price: 1730.00 INR
Availability: InStock

Arduino Mega 2560 R3 Improved Version CH340G Board

The ATmel MCU ATMEGA16U2 MEGA 2560 R3 Improved Version CH340G Board is a micro-controller board base on the ATmega2560. It has a USB host interface to connect with Android based phones, base on the MAX3421e IC. It has 54 digital input/output pins (of which 15 can be used as PWM outputs); 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator; a USB connection, a power jack, an ICSP header, and a reset button. The MEGA ADK is base on the Mega 2560. Similar to the Mega 2560 and Uno, it features an ATmega8U2 program as a USB-to-serial converter. Revision 3 of the Mega ADK board has a resistor pulling the 8U2 HWB line to ground, making it easier to put into DFU (Device Firmware Upgrade) mode.

DNA solutions, Nashik has various types of Modules. Check out our complete collection of Module's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Specification

Microcontroller: ATmega2560

Operating Voltage: 5V

Input Voltage (recommended): 7-12V

Input Voltage (limits): 6-20V

Digital I/O Pins: 54 (of which 15 provide PWM output)

Analog Input Pins: 16

DC Current per I/O Pin: 40 mA

DC Current for 3.3V Pin: 50 mA

Flash Memory: 256 KB of which 8 KB used by bootloader

SRAM: 8 KB

EEPROM: 4 KB

Clock Speed: 16 MHz

USB Host Chip: MAX3421E

Length:101.98mm/4.01in

Width:53.63mm/2.11in

Height:15.29mm/0.60in

Application

Robotics, DIY Kit and Projects that require High Speed Processing.

Package Includes

1 x Arduino Mega 2560 R3 Improved Version CH340G Board

Arduino Mega 2560 R3 Improved Version CH340G Board

See 0 Ratings & Reviews |

SKU: DAD592 | 3165

₹ 2041.4 (inc GST)

Description

Arduino Mega 2560 R3 Improved Version CH340G Board

Arduino Mega 2560 R3 Improved Version CH340G Board

DNA solutions, Nashik has various types of Modules. Check out our complete collection of Module's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Specification

Microcontroller: ATmega2560

Operating Voltage: 5V

Input Voltage (recommended): 7-12V

Input Voltage (limits): 6-20V

Digital I/O Pins: 54 (of which 15 provide PWM output)

Analog Input Pins: 16

DC Current per I/O Pin: 40 mA

DC Current for 3.3V Pin: 50 mA

Flash Memory: 256 KB of which 8 KB used by bootloader

SRAM: 8 KB

EEPROM: 4 KB

Clock Speed: 16 MHz

USB Host Chip: MAX3421E

Length:101.98mm/4.01in

Width:53.63mm/2.11in

Height:15.29mm/0.60in

Application

Robotics, DIY Kit and Projects that require High Speed Processing.

Package Includes

1 x Arduino Mega 2560 R3 Improved Version CH340G Board
