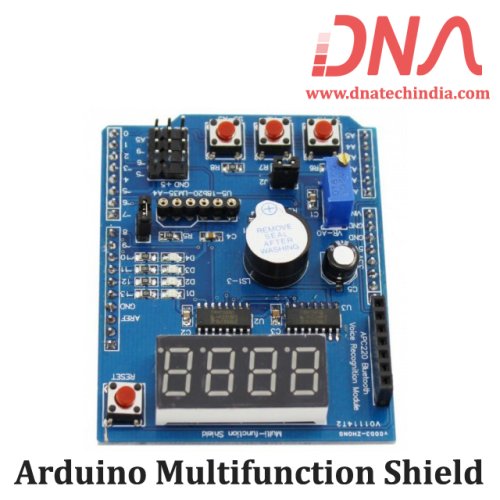

ARDUINO MULTI FUNCTION SHIELD

Want to get started with Arduino? Well ten this multi-function shield is perfect for you if you want to try out different interfacing with Arduino.

The multi-function Learning shield for Arduino has many of features which makes it ideal for beginners who just want to experiment and learn, or just as a general purpose board for more advanced uses. It has provisions for ADC experiments, General Purpose I/O experiments, Segment Displays, Communications and more.

We have Various sizes of Arduino Sheild. Check out our complete collection of Arduino Sheild.

Features of Shield

• Plug and play with Arduino Uno or Mega

• 4 digit 7-segment LED display module

• 4 x surface mount LEDs

• 1 x 10K adjustable precision potentiometer for trying ADC experiments.

• 3 x Independent push buttons

• Piezo buzzer

• DS18B20 temperature sensor interface

• LM35 temperature sensor interface

• Infrared receiver interface

• Serial interface header for convenient connection to serial modules such as Bluetooth, wireless interface, voice module, a voice recognition module etc

Pin Layout of Multi-functional Board

• 4 Red LEDs - Pin 10,11,12,13

• 3 Buttons+Reset button - Pin A1,A2,A3

• Potentiometer(10Kohm) - Pin A0

• 4 digit seven segment led driven by 74HC595 - Latch 4,Clock 7,Data 8

• Buzzer-3(digital on/off)

• Socket for infrared receiver(remote control) - Pin 2

• Socket for temperature sensor LM35 or DS18B20 - Pin A4

• Header for APC220 shield - Gnd,5V,0,1(rx/tx)

• Free pins(PWM) - 5,6,9,A5
