The AVR core combines a rich instruction set with 32 general purpose working registers

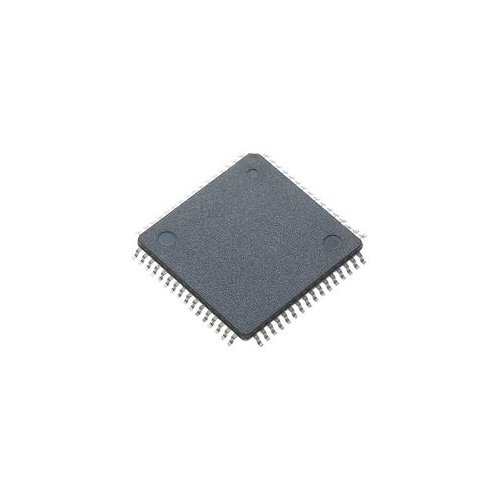

The ATMEGA64-16AU is a 8-bit low-power CMOS Microcontroller Unit based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATmega64 achieves throughputs approaching 1MIPS per MHz, allowing the system designed to optimize power consumption versus processing speed. . All the 32 registers are directly connected to the Arithmetic Logic Unit (ALU), allowing two independent registers to be accessed in one single instruction executed in one clock cycle. The resulting architecture is more code efficient while achieving throughputs up to ten times faster than conventional CISC microcontrollers.
Mounting Style : SMD/SMT
Package / Case : TQFP-64
Core : AVR
Data Bus Width : 8 bit
Maximum Clock Frequency : 16 MHz
Program Memory Size : 64 kB
Data RAM Size : 4 kB
Operating Supply Voltage : 4.5 V to 5.5 V
Maximum Operating Temperature : + 85 C
Processor Series : megaAVR
Packaging : Tray
Brand : Atmel
Data RAM Type : SRAM
Data ROM Size : 2 kB
Data ROM Type : EEPROM
Height : 1 mm
Interface Type : 2-Wire, JTAG, SPI, USART
Length : 14 mm
Minimum Operating Temperature : - 40 C
Number of I/Os : 53 I/O
Number of Timers/Counters : 4 Timer
