The device supports throughput of 16 MIPS at 16MHz and operates between 4.5-5.5 volts.

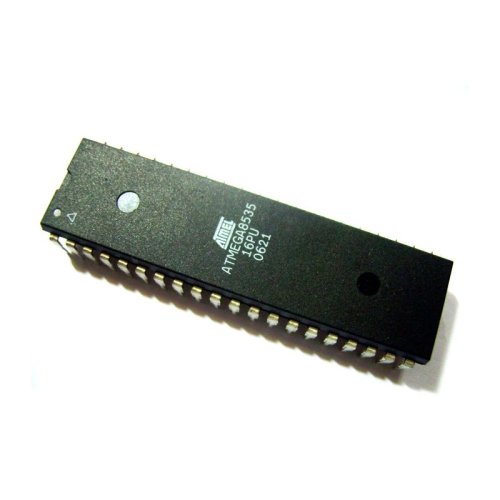

Atmega8535 is a high-performance, low-power Atmel 8-bit AVR RISC-based microcontroller combines 8KB of programmable flash memory, 544B SRAM, 512B EEPROM, and an 8-channel 10-bit A/D converter.
By executing instructions in a single clock cycle, the device achieves through puts approaching 1 MIPS per MHz, balancing power consumption and processing speed.
Flash (kBytes) : 8 kBytes
Pin Count : 44
Max. Operating Freq. (MHz) : 16 MHz
CPU : 8-bit AVR
# of Touch Channels : 16
Hardware QTouch Acquisition : No
Max I/O Pins : 32
Ext Interrupts : 3
USB Speed : No
USB Interface : No
SPI : 1
TWI (I2C) : 1
UART : 1
Graphic LCD : No
Video Decoder : No
Camera Interface : No
ADC Channels : 8
ADC Resolution (bits) : 10
ADC Speed (ksps) : 15
Analog Comparators : 1
Resistive Touch Screen : No
DAC Channels : 0
DAC Resolution (bits) : 0
Temp. Sensor : No
Crypto Engine : No
SRAM (kBytes) : 0.5
EEPROM (Bytes) : 512
Self Program Memory : Yes
External Bus Interface : 0
DRAM Memory : No
NAND Interface : No
pico-Power : No
Temp. Range (deg C) : -40 to 85
I/O Supply Class : 2.7 to 5.5
Operating Voltage (Vcc) : 2.7 to 5.5
FPU : No
MPU / MMU : no / no
Timers : 3
Output Compare Channels : 4
Input Capture Channels : 1
PWM Channels : 4
32kHz RTC : Yes
Calibrated RC Oscillator : Yes
Watchdog : Yes
CAN : 0
LIN : 0
Ethernet : 0
I2S : No
