Automatic Battery Charge Controller

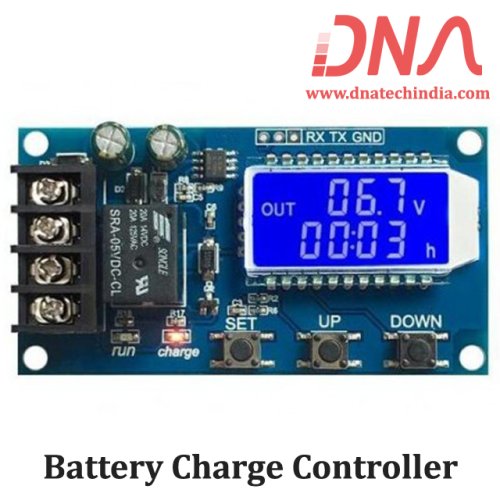

6-60 Volt 10 Ampere Storage battery Charging Lead-acid Solar Charge Controller Module

Now charge your lead Acid battery using this easy to use Automatic Battery charger module.This module has LCD display which is used to display Battery Voltage, percent of battery charged. Using switches you can easily update battery higher cutoff and lower cutoff voltage.

Moreover UART interface is also provided for controlling battery charging via Serial port.

We have Various sizes of Modules. Check out our complete collection of Modules

Description:

• Support Lead-acid battery and Acting Battery,voltage range : 6 Volt to 60 Volts;

• Can display voltage,percent of battery,charging time at the same time through LCD;

• The function is very powerful,realizes the automatic charge control, the control charge time, also may set up and uploads the corresponding parameter through the serial port

Functions Of LCD based automatic Battery charge controller

• Automatic Charge control

• Charge Time Control

• Serial data upload and parameter setting

Calculation of voltage percentage:

Voltage percentage = battery voltage/(volt-HI - volt-LI)

Features of LCD based automatic Battery charge controller

• Charging time recording function : not open charging time control, the product will record a full time, when the entry time display interface, flashing display charging time, and then exit time display interface or next charge to open (relay conduction) when empty;

• Automatic parameter detection : When the parameters are set, exit, if volt-LI dn≥ volt-HI UP, the system will flash display "ERR" as a reminder;

• Battery Access detection : This product attached to the battery, if not connected to the battery, the system will be shown in the downlink "NbE" as a reminder
