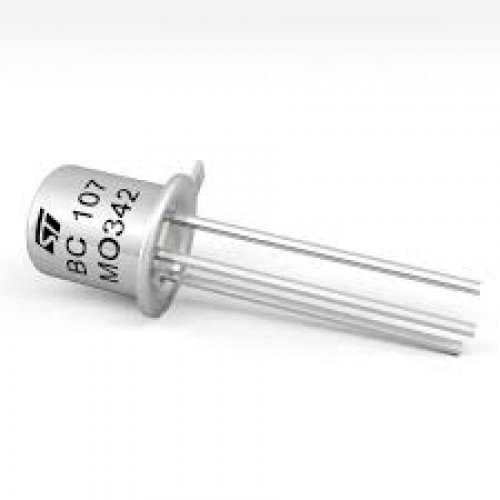

The BC107 and BC107B are silicon Planar Epitaxial NPN transistors in TO-18 metal case.
They are suitable for use in driver stages, low noise input stages and signal processing circuits of television receivers. The PNP complementary types are BC177 and BC177B respectively. The BC107B is Bipolar (BJT) Single Transistor.
VCBO Collector-Base Voltage (I E = 0) 50 V
VCEO Collector-Emitter Voltage (I B = 0) 45 V
VEBO Emitter-Base Voltage (I C = 0) 6 V
I C Collector Current 100 mA
Ptot Total Dissipation at Tamb ≤ 25 oC 0.3W
at TC ≤ 25 oC 0.75W
Tstg Storage Temperature -55 to 175 oC
Tj Max. Operating Junction Temperature 175 oC
See 2 Ratings & Reviews |
The BC107 and BC107B are silicon Planar Epitaxial NPN transistors in TO-18 metal case.
They are suitable for use in driver stages, low noise input stages and signal processing circuits of television receivers. The PNP complementary types are BC177 and BC177B respectively. The BC107B is Bipolar (BJT) Single Transistor.
VCBO Collector-Base Voltage (I E = 0) 50 V
VCEO Collector-Emitter Voltage (I B = 0) 45 V
VEBO Emitter-Base Voltage (I C = 0) 6 V
I C Collector Current 100 mA
Ptot Total Dissipation at Tamb ≤ 25 oC 0.3W
at TC ≤ 25 oC 0.75W
Tstg Storage Temperature -55 to 175 oC
Tj Max. Operating Junction Temperature 175 oC
