BC327 PNP Transistor

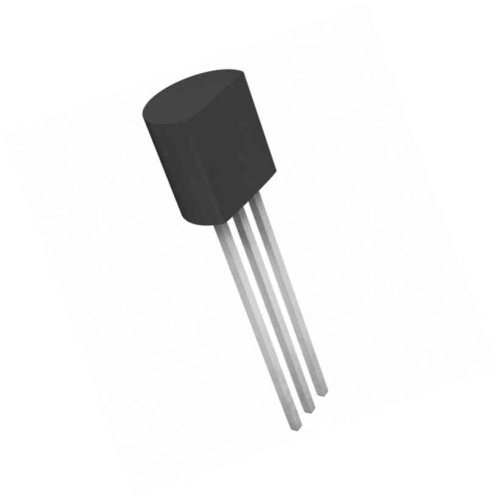

This is Small signal PNP transistor. BC327 Transistor is in TO-92 package form.

Features of BC327

• V_CBO Collector-Base Voltage (I_E=0) : -50 V

• V_CEO Collector-Emitter Voltage (I_B=0) : -45 V

• V_EBO Emitter-Base Voltage (I_C=0) : -5 V

• I_C Collector Current : -0.5 A

• I_CM Collector Peak Current : -1 A

• P_tot Total Dissipation at T_C = 25oC : 625 mW

• T_stg Storage Temperature : -65 to 150 oC

• T_{j Max}. Operating Junction Temperature : 150 oC

• R_thj-amb Thermal Resistance Junction-Ambient Max : 200 oC/W

• R_thj-case Thermal Resistance Junction-Case Max : 83.3 oC/W

Applications of BC327

• WELL SUITABLE FOR TV AND HOME APPLIANCE EQUIPMENT

• SMALL LOAD SWITCH TRANSISTORS WITH HIGH GAIN AND LOW SATURATION VOLTAGE
