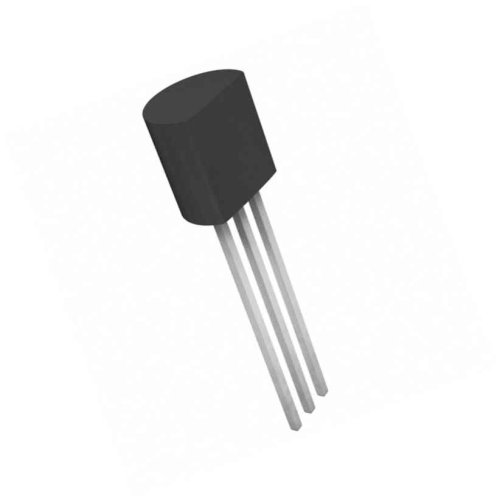

BC337 NPN Transistor

This is NPN Silicon Planar Epitaxial Transistors.

BC337 transistor is in TO-92 Package form. This is Complementary Transistors for use in driver and output stages of audio amplifiers.

Features of BC337

• Collector-Emitter Voltage V_CEO 45 V

• Collector-Emitter Voltage V_CES 50 V

• Emitter-Base Voltage V_EBO 5.0 V

• Collector Current Continuous I_C : 800 mA

• Collector Current Peak I_CM : 1.0 A

• Emitter Current Peak I_EM : 1.0 A

• Base Current Continuous I_B : 100 mA

• Base Current Peak I_BM : 200 mA

• Operating and Storage Junction Temperature Range T_j, T_stg : -65 to +150 °C

• From Junction to Ambient in Free Air R_th : (j-a) 200 °C/W
