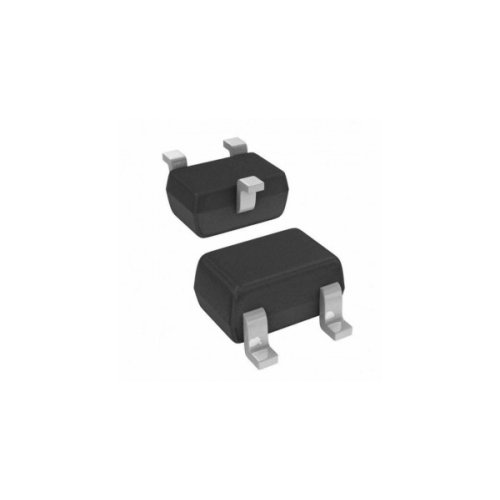

BC847 SMD Transistor

BC847 is NPN general purpose transistor in Surface-Mounted Device (SMD) plastic packages.

BC847 is similar to BC547 npn transistor the only difference is that it is in sot23 smd package.

Features of BC847

• Transistor Model : BC847

• Ideally suitable for automatic insertion

• For Switching and AF amplifier application

• Part Number : BC847B

• Package : SOT-23

• Collector-base voltage : 50V

• Collector-emitter voltage : 45V

• Emitter-base voltage : 6V

• Collector current-continuous : 0.1A

• Collector Power Dissipation : 200mW

• DC current gain :

BC847A : 110-200
BC847B : 200-450
BC847C : 420-800
