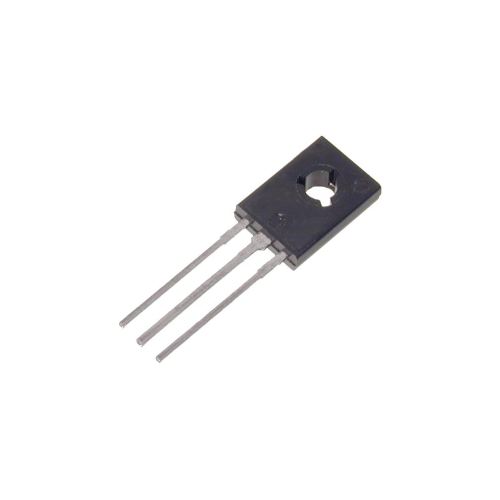

BD135 NPN Transistor

BD135 is the NPN transistor.

BD135 Transistor is use in Medium Power Linear and Switching Applications. BD135 Transistor is Complement to BD136, BD138 and BD140 respectively.

Features of BD135 NPN Transistor

• V_CBO Collector-Base Voltage : BD135 45V

• V_CEO Collector-Emitter Voltage : BD135 45V

• V_EBO Emitter-Base Voltage 5 V

• I_C Collector Current (DC) 1.5 A

• I_CP Collector Current (Pulse) 3.0 A

• I_B Base Current 0.5 A

• P_C Collector Dissipation (T_C=25°C) 12.5 W

• P_C Collector Dissipation (T_a=25°C) 1.25 W

• T_J Junction Temperature 150 °C

• T_STG Storage Temperature - 55 ~ 150 °C

• V_CE(sat) Collector-Emitter Saturation Voltage I_C = 500mA, I_B = 50mA 0.5 V

• V_BE(on) Base-Emitter ON Voltage V_CE = 2V, I_C = 0.5A 1 V
