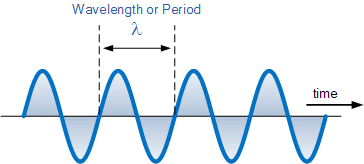

Also, sound need not be a continuous frequency sound wave such as a single tone or a musical note, but may be an acoustic wave made from a mechanical vibration, noise or even a single pulse of sound such as a "bang".

Sound Transducers include both sensors, that convert sound into and electrical signal such as a microphone, and actuators that convert the electrical signals back into sound such as a loudspeaker. We tend to think of sound as only existing in the range of frequencies detectable by the human ear, from 20Hz up to 20kHz (a typical loudspeaker frequency response), but sound can also extend way beyond these ranges.

Loudspeakers are also sound transducers that are classed as "sound actuators" and are the exact opposite of microphones. Their job is to convert complex electrical analogue signals into sound waves being as close to the original input signal as possible.

Loudspeakers are available in all shapes, sizes and frequency ranges with the more common types being moving coil, electrostatic, isodynamic and piezo-electric. Moving coil type loudspeakers are by far the most commonly used speaker in electronic circuits, kits and toys, and as such it is this type of sound transducer we will examine below.

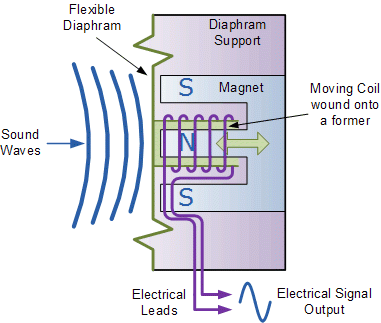

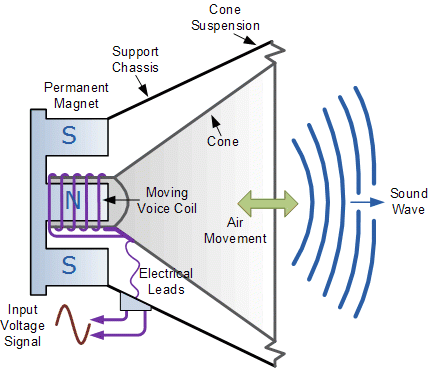

The principle of operation of the Moving Coil Loudspeaker is the exact opposite to that of the "Dynamic Microphone" we look at above. A coil of fine wire, called the "speech or voice coil", is suspended within a very strong magnetic field, and is attached to a paper or Mylar cone, called a "diaphragm" which itself is suspended at its edges to a metal frame or chassis. Then unlike the microphone which is pressure sensitive input device, this type of sound transducer can be classed as a pressure generating output device.

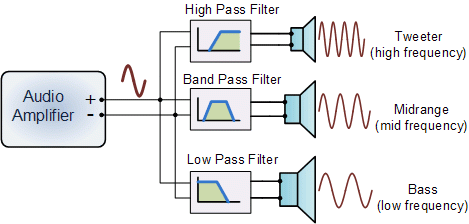

Descriptive Unit

Frequency Range

Sub-Woofer

10Hz to 100Hz

Bass

20Hz to 3kHz

Mid-Range

1kHz to 10kHz

Tweeter

3kHz to 30kHz
