Wiegand Interface

Wiegand interface is a defacto industry standard used for interfacing card readers (smart card, proximity cards) to control panels. So basically the wiegand format is used for security card data encoding. Their is a lot of confusion regarding the 'Wiegand Format', when the term WIEGAND is used it basically means a 26-bit data format with a specific arrangement of binary data. This 26-bit data format is a widely used industry standard. Almost all access control systems accept the standard 26-bit data format. 26-bit originated with true Wiegand swipe card technology. There are other data format like the 34-bit & 37-bit format which use the same signaling standard as that of wiegand but have different data formatting standard.

Wiegand Data Format Standard

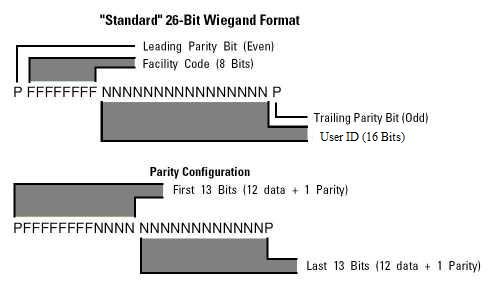

From the above diagram you can see that the wiegand format consists of a parity bit, 8-bit facility code, 16-bit user ID, and another parity bit. A parity bit is used as a very simple quality check for the accuracy of the transmitted binary data. In the above example, the leading parity bit (even) is linked to the first 12 data bits. If the 12 data bits result in an odd number, the parity bit is set to one to make the 13-bit total come out even. The final 13 bits are similarly set to an odd total.

Wiegand Signaling Standard

For communication with the microcontroller the Wiegand interface uses two wires for carrying the card data to the controller these wires are called as DATA0 & DATA1. Normally both these lines are high i.e. when no data is being sent. A '0' is sent by making DATA0 line LOW & DATA1 line HIGH. Whereas a '1' is sent by making DATA1 line LOW & keeping DATA0 line HIGH. This signal is at TTL level & not an open collector signal so can be directly connected to the Microcontroller. A typical pulse width is 50 µs with an inter-spacing of 1ms but the actual timing values & output circuitry (open collector/TTL) are determined by the card reader manufacturer.
