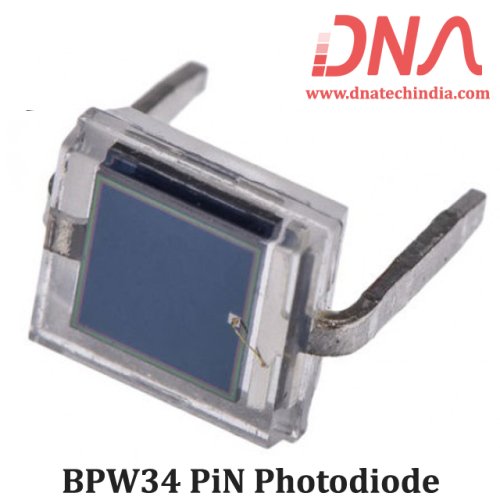

BPW34 PiN Photodiode

The BPW34 is a tiny, general purpose PiN Photodiode.

This photodiode has a ton of uses, one of which is to use it is a mini solar cell to power your project. The cell is sensitive to a wide range of light wavelengths (430-1100nm), so it should produce power in a number of different settings. The rated open circuit voltage is 350mV (900nm, 1mW/cm2 light source), and short circuit current is 47μA.

We have Various sizes of Diode. Check out our complete collection of Diode.

Features of BPW34

• Package type : leaded

• Package form : top view

• Radiant sensitive area (in mm2) : 7.5

• High photo sensitivity

• High radiant sensitivity

• Suitable for visible and near infrared radiation

• Fast response times

• Angle of half sensitivity : phi = ± 65°

• Lead (Pb)-free, RoHS compliant

• Off-state voltage : 60V

• Wavelength of max. photosensitivity : 900nm

• Transmission angle : 130o

• Photoelectric current : 50uA
