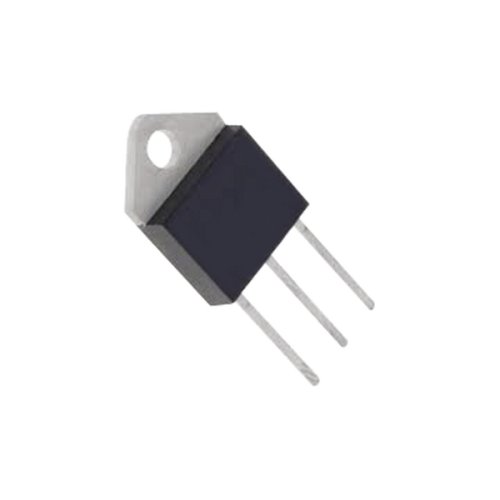

The BTA41-600BRG is a TRIAC for phase control operations in light dimmers, motor speed controllers.
Low Thermal Resistance with Clip Bonding High Commutation Capability. Available in high power packages, the BTA/ BTB40-41 series is suitable for general purpose AC switching.
BTA41 Triac can be used as an ON/OFF function in applications such as static relays, heating regulation, induction motor starting circuits or for phase control operation in light dimmers, motor speed controllers. They provide a superior performance in surge current handling capabilities. By using an internal ceramic pad, the BTA series provides voltage insulated tab (rated at 2500V RMS) complying with UL standards.
High current TRIAC
Low thermal resistance with clip bonding
High commutation capability
BTA series UL1557 certified (File ref : 81734)
Packages are RoHS (2002/95/EC) compliant
On/off function in static relays, heating regulation, induction motor starting circuits
Phase control operations in light dimmers, motor speed controllers, and similar
