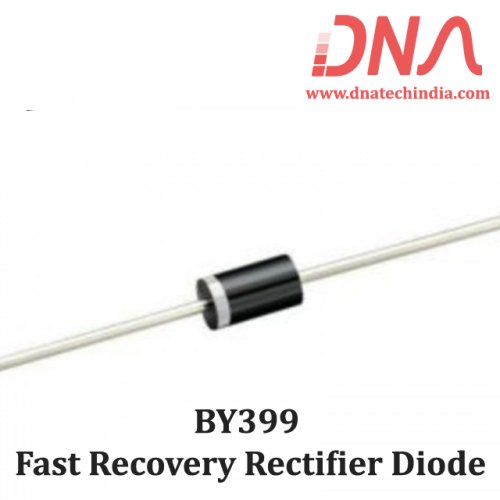

BY399 Fast Diode

BY399 Diode is very fast diode.

Series of BY399 Diodes are very fast and use in fastest recovery rectifiers.

We have Various sizes of Diode. Check out our complete collection of Diode.

Features of BY399 Fast Diode

• High forward surge current

• Compliant to RoHS, REACH, Conflict Minerals

• High current capability

• High reliability

• Low reverse current

• Low forward voltage drop

• Fast switching for high efficiency

• Maximum Recurrent Peak Reverse Voltage VRRM =800V

• Maximum RMS Voltage VRMS=560V

• Maximum DC Blocking Voltage VDC=800V

• Junction Temperature Range TJ - 65 to + 150 °C

• Storage Temperature Range TSTG - 65 to + 150 °C


Application of BY399 Diode

• Rectification of medium frequencies, snubber circuits or Bootstrap diodes Commercial grade.

Mechanical Feature

• Case : DO-201AD Molded plastic

• Epoxy : UL94V-O rate flame retardant

• Lead : Axial lead solderable per MIL-STD-202, Method 208 guaranteed

• Polarity : Color band denotes cathode end

• Mounting position : Any

• Weight : 1.16 grams
