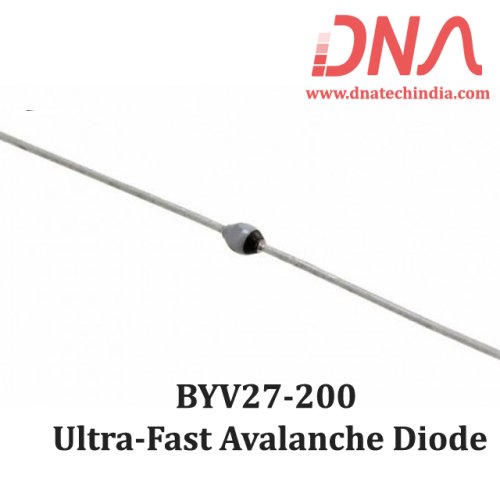

BYV27-200 Ultra-Fast Avalanche Diode
We have Various sizes of Diode. Check out our complete collection of Diode.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Controlled avalanche characteristic
Low forward voltage
Ultra fast recovery time
Glass passivated junction
Hermetically sealed package
VRSM 220 V
VR = VRRM 200 V
Peak forward surge current IFSM 50Amp
Repetitive peak forward current IFRM 15Amp
Average forward current IF(AV) 2Amp
Junction and storage temperature range Tj = Tstg -55 to +175°C
Case : SOD-57
Terminals : plated axial leads, solderable per MIL-STD-750,
method 2026
Polarity : color band denotes cathode end
Mounting position : any
Weight : approx. 369 mg
Very fast rectification diode e.g. for switch mode power supply
