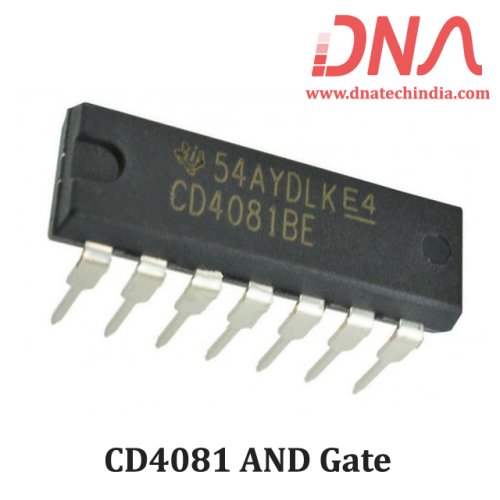

CD4081 Quad AND Gate IC

CH4081 Quad 2 input AND Gate IC

The CD4081 is a quad 2-input AND gate. The outputs are fully buffered for highest noise immunity and pattern insensitivity to output impedance variations.

It operates over a recommended VDD power supply range of 3 V to 15 V referenced to VSS (usually ground). Unused inputs must be connected to VDD, VSS, or another input.

We have Various sizes of 4000 Series IC. Check out our complete collection of 4000 Series IC.

Specifications Of CD4081BE DIP IC

• Product : Single-Function Gate

• Logic Function : AND

• Logic Family : CD4000

• Number of Gates : 4 Gate

• Number of Input Lines : 2 Input

• Number of Output Lines : 1 Output

• High Level Output Current : - 1.5 mA

• Low Level Output Current : 1.5 mA

• Propagation Delay Time : 120 ns

• Supply Voltage - Max : 18 V

• Supply Voltage - Min : 3 V

• Package / Case : PDIP-14

• Packaging : Tube

• Function : Quad 2-Input.

• Input Type : CMOS

• Operating Temperature Range : - 55 C to + 125 C

• Output Type : CMOS

• Quiescent Current : 20 nA
