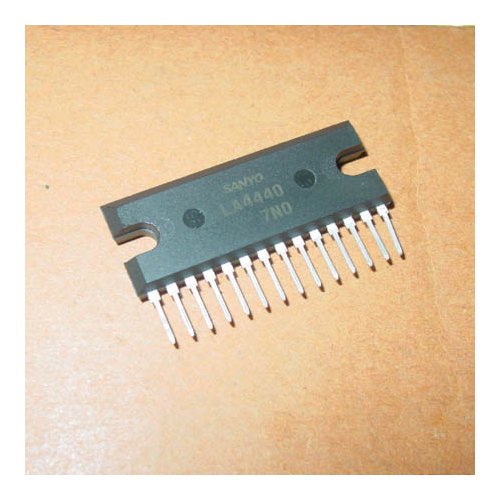

CD4440 is the 6W 2-channel bridge power amplifier. It also called as Dual Power Amplifier. CD4440 is nothing but LA4440.
Built-in 2 channels (dual) enabling use in stereo and bridge amplifier applications.
Dual : 6W´2 (typ.)
Bridge : 19W (typ.)
Minimum number of external parts required.
Small pop noise at the time of power supply ON/OFF and good starting balance.
Good ripple rejection : 46dB (typ.)
Good channel separation.
Small residual noise (Rg=0).
Low distortion over a wide range from low frequencies to high frequencies.
Easy to design radiator fin.
Built-in audio muting function.
Built-in protectors.
a. Thermal protector
b. Overvoltage, surge voltage protector
c. Pin-to-pin short protector
