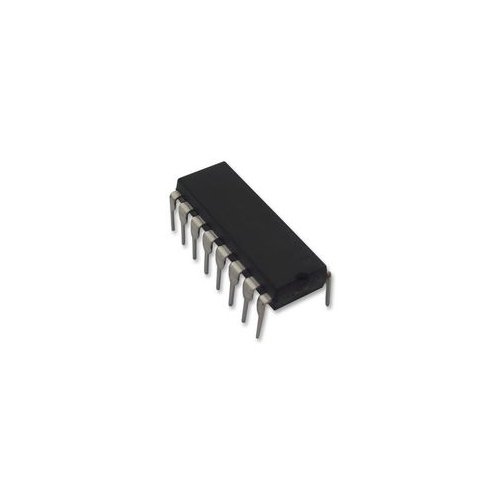

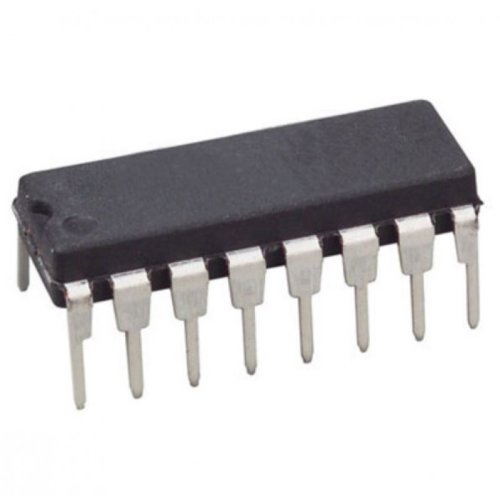

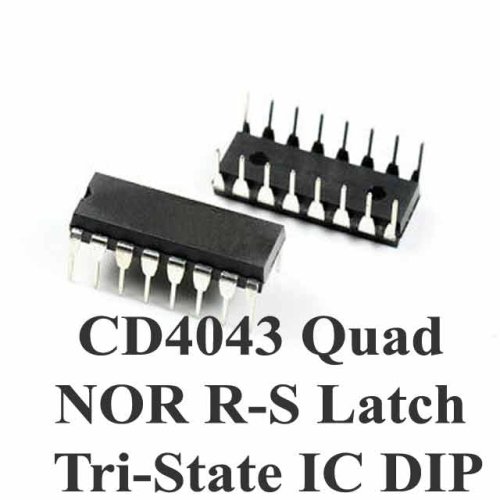

CD4043 Quad NOR R-S Latch Tri-State IC DIP

CD4043 Quad NOR R-S Latch Tri-State IC DIP

CD4043BMS types are quad cross-coupled 3-state CMOS NOR latches and the CD4044BMS types are quad cross-coupled 3-state CMOS NAND latches. Each latch has a separate Q output and individual SET and RESET inputs. The Q outputs are controlled by a common ENABLE input. A logic “1” or high on the ENABLE input connects the latch states to the Q outputs. A logic “0” or low on the ENABLE input disconnects the latch states from the Q outputs, results in an open circuit feature allows common busing of the outputs.

DNA solutions,Nashik has various types of Power IC's. Check out our complete collection of Power IC's.

Applications of CD4043 Quad NOR RS Latch Tri State IC

• Holding Register in Multi-Register System

• Four Bits of Independent Storage with Output ENABLE

• Strobed Register

• General Digital Logic

• CD4043BMS for Positive Logic Systems

• CD4044BMS for Negative Logic Systems

Package Includes

1X CD4043 Quad NOR R-S Latch Tri-State IC DIP
