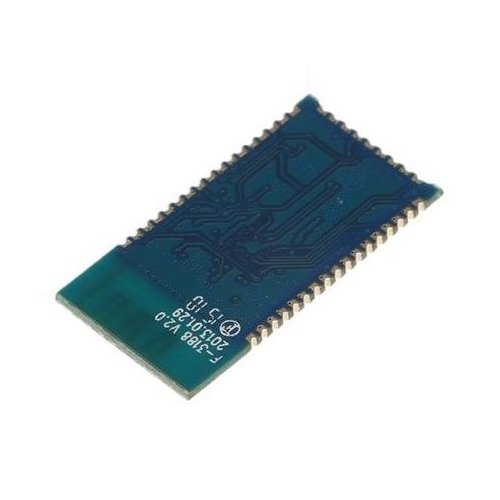

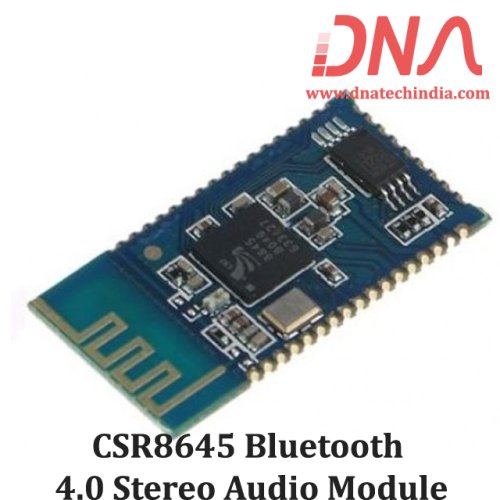

CSR8645 Bluetooth 4.0 Stereo Audio Module

This Module is based on Qualcomm's CSR8645 Bluetooth Audio Platform IC.

The CSR8645/F3188 is an easy and cost-effective platform for developing wireless audio products and supports reduced development time. It is an ideal solution for a range of highly differentiated home entertainment and wearable audio products including stereo headphones, speakers, speakerphones, headsets and hands-free devices.

We have Various sizes of Communication Modules. Check out our complete collection of Communication Modules.

Features of CSR8645/F3188 Bluetooth 4.0 Stereo Audio Module

• Type : F-3188

• Bluetooth Specification : v 4.0

• Voltage : DC 3.3 Volts - 4.2 Volts

• Bluetooth protocol : HFP V1.6/A2DP V1.2/AVRCP V1.4/HSP V1.2

• Working Current : =30mA

• Standby Current : <50uA

• Temperature range : -40 Celsius ~ +80 Celsius

• Wireless transmission range : > 10m

• Transmission power : CLASS1/CLASS2/CLASS3,9dbm(MAX)

• Sensitivity : -80dBm<0.1%BER

• Frequency Range : 2.4GHZ ~ 2.480GHZ

• External Interface : PIO/SPI/I2S/PCM/USB

• Audio Performance : AAC/MP3/SBC/APTX

• Audio SNR : =75dB
