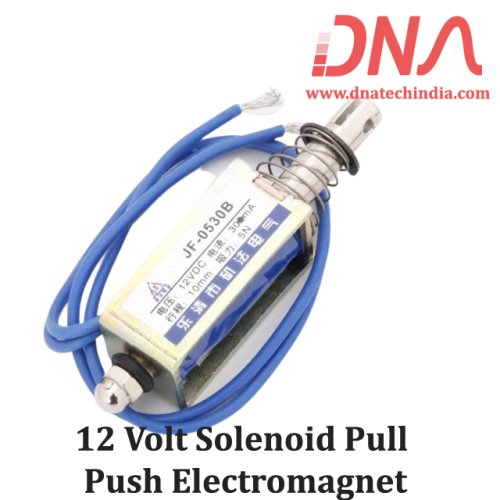

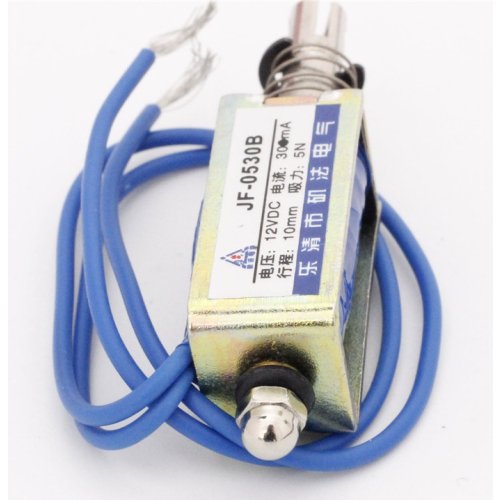

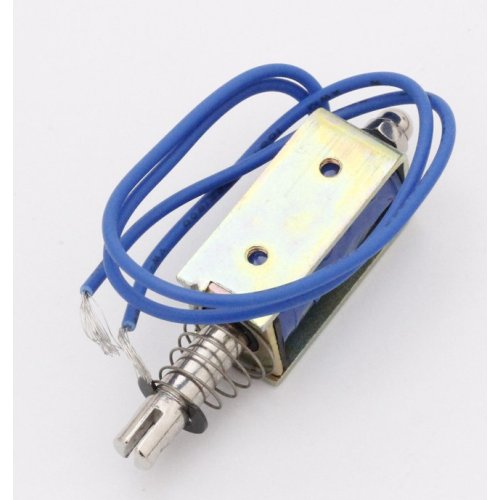

12 Volt Solenoid Pull Push Electromagnet

DC 12 Volt Solenoid/Pull Push Type Electromagnet

This is a Pull Push type linear Motion type DC electromagnet. When 12 volt is applied the plunger is pulled and when power is turned off the plunger goes to the default position.

We have Various sizes of Robotics.Check out our complete collection of Robotics

Specifications of 12 Volt Solenoid

• Product Name : 12 Volts DC Solenoid/Electromagnet

• Model : JF-0530B

• Rated voltage : 12 Volts DC

• Rated current : 300 mA

• Type : push-pull

• Force and stroke of piston : 5n / 10mm

• The size of the case : 30x16x15 mm

• The size of the bar : 6 x 58 mm

• Mounting hole diameter : 2.5 mm

• Cable length : 20 cm

NOTE : Please do not give supply for long duration or it may get damaged.
