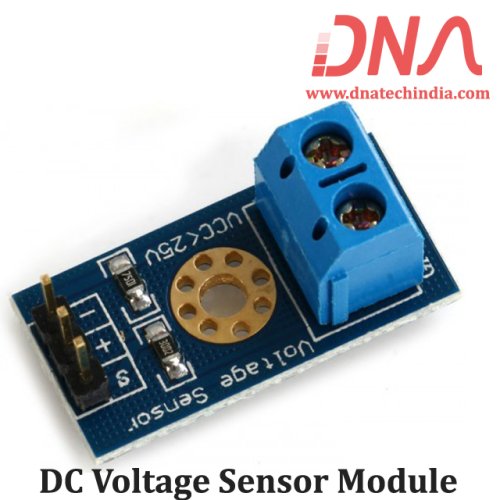

This DC Voltage Sensor Module is essentially a 5:1 potential divider circuit built using precession resistors for high accuracy.
The Arduino analog input is limited to a 5 VDC input. If you wish to measure higher voltages,this module allows you to measure voltages of 0-25V. Keep in mind, you are restricted to voltages that are less than 25 volts. More than that and you will exceed the voltage limit of your Arduino input.
We have Various sizes of Misc Modules. Check out our complete collection of Misc Modules
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Voltage input range : DC 0-25 V;
Operating voltage output : 3.3V – 5V MAX
Voltage detection range : DC0.02445V - 25V
Voltage analog resolution : 0.00489
Output Interface : "+ " connected 5/3.3V, "-" connected GND, "s" connected Arduino AD pins
DC input interface : red terminal positive with VCC, negative with GND
