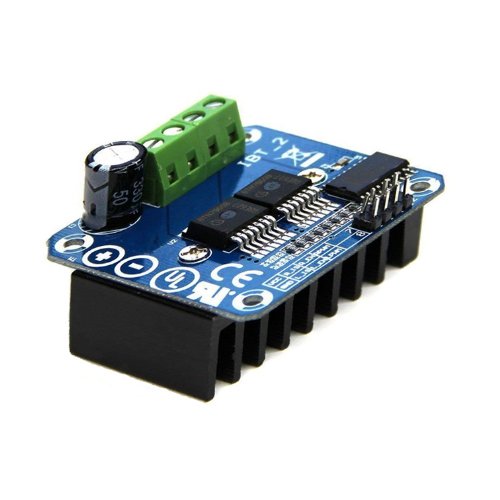

Double BTS7960 H-Bridge Stepper Motor Driver Module

BTS7960 H-Bridge Driver for high current applications, features integrated driver IC, current sense, and protection mechanisms.

The Double BTS7960 H-Bridge Stepper Motor Driver Module is designed for high-power motor drive applications. It utilizes the BTS7960 high current half bridge, integrating a p-channel high side MOSFET and an n-channel low side MOSFET. This setup eliminates the need for a charge pump, reducing EMI while ensuring effective interfacing with microcontrollers through its integrated driver IC. It includes features like logic level inputs, current sensing, and various protections, making it suitable for PWM motor drives.

This Double BTS7960 H-Bridge Stepper Motor Driver Module offers a compact and cost-effective solution for applications requiring high current. Its design minimizes board space consumption while providing robust performance. Ideal for robotics, automation, and other motor control applications, this module supports high efficiency and reliability.

Explore the capabilities of the Double BTS7960 H-Bridge Stepper Motor Driver Module for your projects. With its comprehensive protection features and ease of integration, it is a preferred choice for engineers and hobbyists alike in India.

At DNA, we provide quality Stepper Motors from leading manufacturers. Explore our range of products and discover the best solutions for your projects. Check other "Stepper Motors" that we have in stock.

If you need specific electronic components, reach out to us. We can import parts and support your needs in retail or bulk. Check out related items like Sensors, SMPS, Microcontrollers, Capacitors, Programmers, and DC to DC Converter Modules. Contact Us

Features of Double BTS7960 H-Bridge Stepper Motor Driver Module

• High current handling
• Integrated driver IC
• Current sense and protection features

Specification of Double BTS7960 H-Bridge Stepper Motor Driver Module

• 43A current capacity
• Logic level input
• Overtemperature and overvoltage protection

Applications of Double BTS7960 H-Bridge Stepper Motor Driver Module

• Robotics
• Automation systems
• Motor control applications

Related Links for Double BTS7960 H-Bridge Stepper Motor Driver Module

• Other Products from Stepper Motors Category

Package Includes

• 1 X Double BTS7960 H-Bridge Stepper Motor Driver Module
