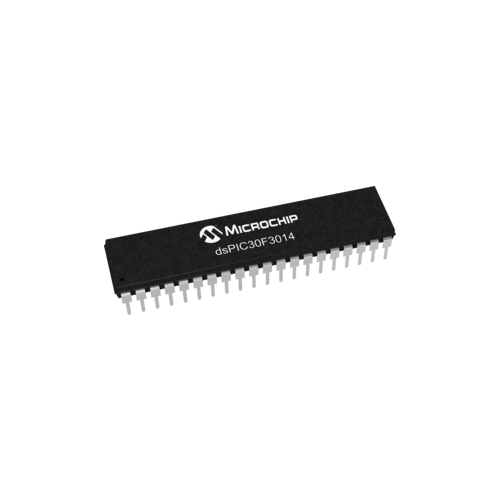

dsPIC30f3014
High-Performance,16-bit Digital Signal Controllers
dsPIC30F Motor Control 16-bit Digital Signal Controller. Seamless migration options from this device to dsPIC33F and PIC24 devices in similar packages.
Features of dsPIC30f3014
High-Performance Modified RISC CPU:
- Modified Harvard Architecture
- C Compiler Optimized Instruction Set Architecture
- Flexible Addressing modes
- 24-Bit Wide Instructions, 16-Bit Wide Data Path
- Up to 48 Kbytes On-Chip Flash Program Space
- 2 Kbytes of On-Chip Data RAM
- 1 Kbyte of Nonvolatile Data EEPROM
- 16 x 16-Bit Working Register Array
- DC to 40 MHz External Clock Input
- 4 MHz-10 MHz Oscillator Input with
- Up to 33 Interrupt Sources:
- 8 user-selectable priority levels
- 3 external interrupt sources
- 4 processor traps
DSP Features
- Dual Data Fetch
- Modulo and Bit-Reversed modes
- Two 40-Bit Wide Accumulators with Optional saturation Logic
- 17-Bit x 17-Bit Single-Cycle Hardware Fractional/Integer Multiplier
- All DSP Instructions are Single Cycle
- Multiply-Accumulate (MAC) Operation
Peripheral Features of dsPIC30f3014
- High-Current Sink/Source I/O Pins : 25 mA/25 mA
- Up to Five 16-Bit Timers/Counters; Optionally Pair Up
- 16-Bit Timers into 32-Bit Timer modules
- Up to Four 16-Bit Capture Input Functions
- Up to Four 16-Bit Compare/PWM Output Functions
- Data Converter Interface (DCI) Supports Common
- Audio Codec Protocols, Including I2S and AC’97
- 3-Wire SPI module (supports 4 Frame modes)
- I2C™ module Supports Multi-Master/Slave mode and 7-Bit/10-Bit Addressing
- Up to Two Addressable UART modules with FIFO Buffers
- CAN bus module Compliant with CAN 2.0B Standard
Analog Features of dsPIC30f3014
- 12-Bit Analog-to-Digital Converter (ADC) with:
- 200 ksps conversion rate
- Up to 13 input channels
- Conversion available during Sleep and Idle
- Programmable Low-Voltage Detection (PLVD)
- Programmable Brown-out Reset
