Description

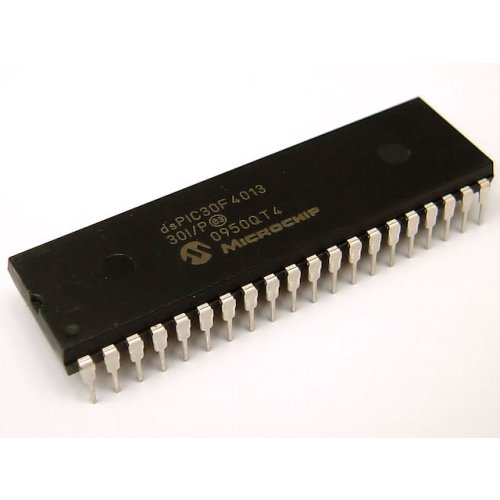

DSPIC30F4013

Name: dsPIC30F4013
Brand: Microchip
SKU: DAA325
Price: 880.20 INR
Availability: InStock

dsPIC30F4013

dsPIC30F4013 Features

High-Performance Modified RISC CPU:

Modified Harvard architecture
C compiler optimized instruction set architecture
Flexible addressing modes
84 base instructions
24-bit wide instructions, 16-bit wide data path
Up to 48 Kbytes on-chip Flash program space
2 Kbytes of on-chip data RAM
1 Kbyte of non-volatile data EEPROM
16 x 16-bit working register array
Up to 30 MIPs operation:

- DC to 40 MHz external clock input

- 4 MHz-10 MHz oscillator input with

PLL active (4x, 8x, 16x)
Up to 33 interrupt sources:

- 8 user selectable priority levels

- 3 external interrupt sources

- 4 processor traps

DSP Features:

Dual data fetch

Modulo and Bit-reversed modes

Two 40-bit wide accumulators with optional saturation logic

17-bit x 17-bit single cycle hardware fractional/ integer multiplier

All DSP instructins are single cycle

- Multiply-Accumulate (MAC) operation

Single cycle ±16 shift

Peripheral Features of ds PIC4013

High current sink/source I/O pins : 25 mA/25 mA

Up to five 16-bit timers/counters; optionally pair

6-bit timers into 32-bit timer modules

Up to four 16-bit Capture input functions

Up to four 16-bit Compare/PWM output functions

Data Converter Interface (DCI) supports common audio Codec protocols, including I2S and AC’97

3-wire SPI™ module (supports 4 Frame modes)

I2C™ module supports Multi-Master/Slave mode and 7-bit/10-bit addressing

Up to two addressable UART modules with FIFO buffers

CAN bus module compliant with CAN 2.0B standard

Analog Features of dsPIC30f4013

12-bit Analog-to-Digital Converter (A/D) with:

- 100 Ksps conversion rate
- Up to 13 input channels
- Conversion available during Sleep and Idle

Programmable Low Voltage Detection (PLVD)

Programmable Brown-out Detection and Reset generation

dsPIC30F4013

See 0 Ratings & Reviews |

Stock: 21

Microchip

SKU: DAA325

₹ 1,038.64 (inc GST)

Description

DSPIC30F4013

dsPIC30F4013

dsPIC30F4013 Features

High-Performance Modified RISC CPU:

Modified Harvard architecture
C compiler optimized instruction set architecture
Flexible addressing modes
84 base instructions
24-bit wide instructions, 16-bit wide data path
Up to 48 Kbytes on-chip Flash program space
2 Kbytes of on-chip data RAM
1 Kbyte of non-volatile data EEPROM
16 x 16-bit working register array
Up to 30 MIPs operation:

- DC to 40 MHz external clock input

- 4 MHz-10 MHz oscillator input with

PLL active (4x, 8x, 16x)
Up to 33 interrupt sources:

- 8 user selectable priority levels

- 3 external interrupt sources

- 4 processor traps

DSP Features:

Dual data fetch

Modulo and Bit-reversed modes

Two 40-bit wide accumulators with optional saturation logic

17-bit x 17-bit single cycle hardware fractional/ integer multiplier

All DSP instructins are single cycle

- Multiply-Accumulate (MAC) operation

Single cycle ±16 shift

Peripheral Features of ds PIC4013

High current sink/source I/O pins : 25 mA/25 mA

Up to five 16-bit timers/counters; optionally pair

6-bit timers into 32-bit timer modules

Up to four 16-bit Capture input functions

Up to four 16-bit Compare/PWM output functions

Data Converter Interface (DCI) supports common audio Codec protocols, including I2S and AC’97

3-wire SPI™ module (supports 4 Frame modes)

I2C™ module supports Multi-Master/Slave mode and 7-bit/10-bit addressing

Up to two addressable UART modules with FIFO buffers

CAN bus module compliant with CAN 2.0B standard

Analog Features of dsPIC30f4013

12-bit Analog-to-Digital Converter (A/D) with:

- 100 Ksps conversion rate
- Up to 13 input channels
- Conversion available during Sleep and Idle

Programmable Low Voltage Detection (PLVD)

Programmable Brown-out Detection and Reset generation
