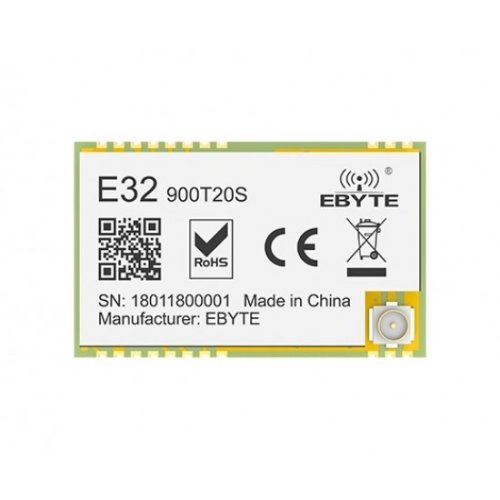

E32-900T20S 900 MHz EBYTE Wireless Transceiver Serial Port Module

E32 900T20S 900 MHz EBYTE Wireless Transceiver Serial Port Module

The E32-900T20S is a high-performance wireless transceiver module that transmits data over long distances using LoRa spread spectrum technology. Operating at 900 MHz, the module offers enhanced communication range and data integrity, with a maximum output power of 100mW (20dBm). Its low power consumption and small form factor make it ideal for energy-efficient and space-constrained applications. This module is designed with a UART (TTL) interface, simplifying integration with microcontrollers and other digital systems.

DNA solutions, Nashik has various types of Module's. Check out our complete collection of Module's.

• Under ideal conditions, the communication distance can reach 5.5km, and the transmission distance is better thantraditional GFSK


• Adopt industrial-grade active temperature-compensated crystal oscillator to ensure its stability and consistency


• Advanced LoRa modulation, with the advantage of long-distance anti-interference


• Fixed-point transmission, broadcast transmission, channel monitoring


• FEC forward error correction to improve communication stability


• Air wake-up (ultra-low power consumption), suitable for battery applications


• The maximum transmit power is 20dBm, and the software is multi-level adjustable


• Support 868/915MHz EU general frequency band


• 2.3~5.5V power supply, power supply greater than 3.3V can guarantee the best performance


• Industrial-grade standard design, supporting long-term use at -40～+85℃


• IPEX/stamp hole interface for easy connection of coaxial cable or external antenna


• The data transmission rate of 0.3k～19.2kbps

Specifications of E32 900T20S 900 MHz EBYTE Wireless Transceiver Serial Port Module

• Frequency Band: 900 MHz (ISM band)

• Modulation: LoRa spread spectrum

• Output Power: 20dBm (100mW)

• Receiver Sensitivity: -139dBm

• Communication Range: Up to 8 km (line-of-sight in open environments)

• Data Rate: 0.3kbps to 19.2kbps

• Supply Voltage: 3.3V to 5.2V

Package Includes

• 1 x E32 900T20S 900 MHz EBYTE Wireless Transceiver Serial Port Module
