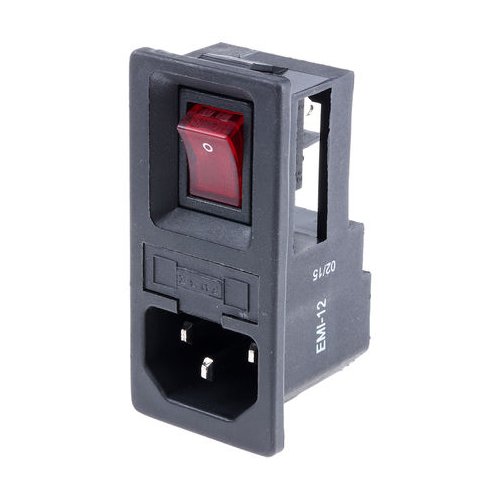

EMI-12 Power Inlet

This is a 250 volts 6 ampere IEC Inlet with fuse holder & illuminated DPST Power Switch all in one package.

Specification of Power Inlet EMI-12 :

• Current & voltage rating : 6Amp, 250VAC

• Panle thickness : 0.8 to 2.5 mm

• Permissible temperature - For soldering : 270 deg.C for 5 seconds max.

• Permissible temperature - With/without load : 0 to 70deg. C

• Approvals : Self-Certified

• Reference Standard : IEC 60320-1

• Material - Body : Nylon

• Material - Terminals : Copper Alloy, Tin plating

• Terminals : Solder-type / Fast on 4.8X 0.8

• Mounting : Panel, Snap-in type

• HV Breakdown test for 1 Minute : 2 KVAC

• Insulation Resistance at 500 VDC : 1000 Mohms min.

• Contact Resistance (Initial) : 10 mohms max.

• Product Description : IEC Inlet with fuse holder & illuminated DPST Switch
