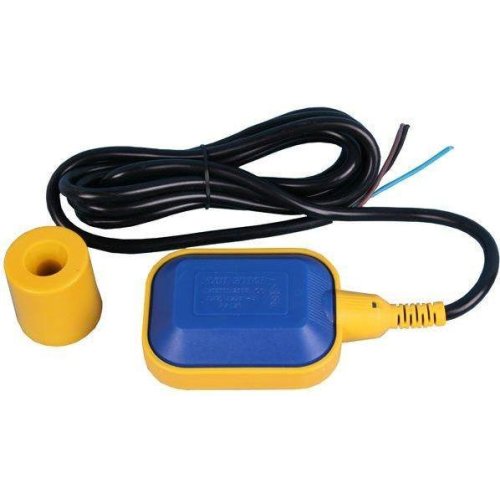

Float Switch/Sensor

This is a high quality Industrial grade Float Switch also called as Float level sensor.

This sensor can be used to monitor fluid or water level in a tank. This sensor is can be used to Turn ON/OFF the pump or give an Indication or an alarm.

Specification Of Float Switch

• Wire Length : 2 meter i.e 78.74 inchs

• Protection class : IP68

• Working pressure : 1Bar

• Rated current/voltage : 16 (8A) 250V ~ 16(4A) 380V

• Operating temperature : 0~70°

• Dimensions : Rectangle Box : 78 x 103.5 mm/ 3.07 x 4.07 in

• Dimensions : Cylinder : 61 x 55 mm/ 2.4 x 2.17 in

• Color : yellow + blue

• Mechanical endurance : ≥ 100,000 times

• Electrical endurance : ≥ 500,000 times
