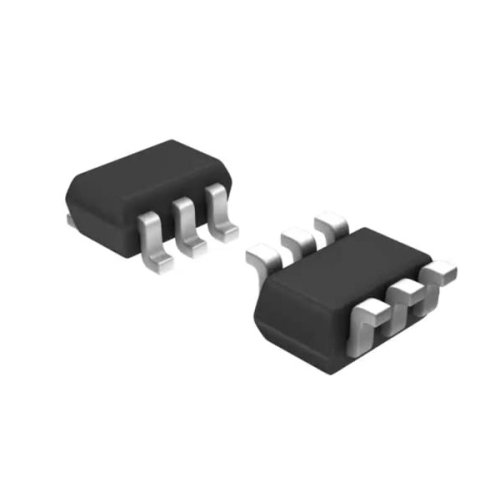

FS8205A Lithium battery protection IC

FS8205A is Dual N-Channel Mosfet Lithium battery protection MOSFET.

Advanced Power MOSFET uses advanced processing techniques to achieve low resistance , extremely efficient and cost- effective equipment , the most suitable lithium-ion battery charge and discharge switches. SOT23-6 package widely used in all commercial and industrial applications.

Application of FS8205A Lithium battery protection IC

Parts are used all electronic products, such as Alarm, Computer, TV, Camera, Watch, Mobile Phone, Speaker, MP3/MP4 Player, Electric Toy, VCD/DVD Player, Telecommunication, Wireless Control and so on.

Features of FS8205A Lithium battery protection IC

• 100% original and new part

• Large quantity in stock

• Good After-Sales Services

• Low on-resistance RDS (ON) = 27m max . (V GS = 4.5V, ID = 6A)

• On-resistance RDS (ON), = 36m max . (VGS = 2.5V, ID = 5A)

• Package Type : TSSOP-6;

• Vds : 20V

• Vgs : +/-12V;

• Pin Number : 6 Pin

• Total Size : 6.3 x 3.1 x 1 mm
